Röhm Drilling Machine Vices BSS

Drilling Machine Vices
BSS

APPLICATION For securely clamping workpieces on drills and measuring machines.
TYPE Clamping system mechanical , manually operated. Standard version. TECHNICAL FEATURES - Body made out of special steel casting - One-hand operation - Positive locking CUSTOMER BENEFITS » Quick-clamping vice » Optimal price/performance ratio
» For quick clamping and unclamping, particularly in the case of series workpiece machining » One-hand operation » Long guidance of moving jaw, even in the external clamping range » Clamping jaws are reversible, one side smooth and ground on both sides » Solid clamping jaw with one longitudinal prism and two transverse prisms

A12

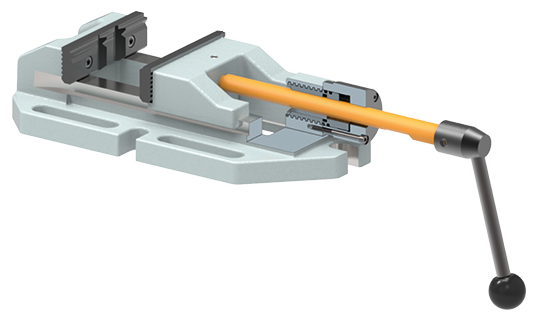

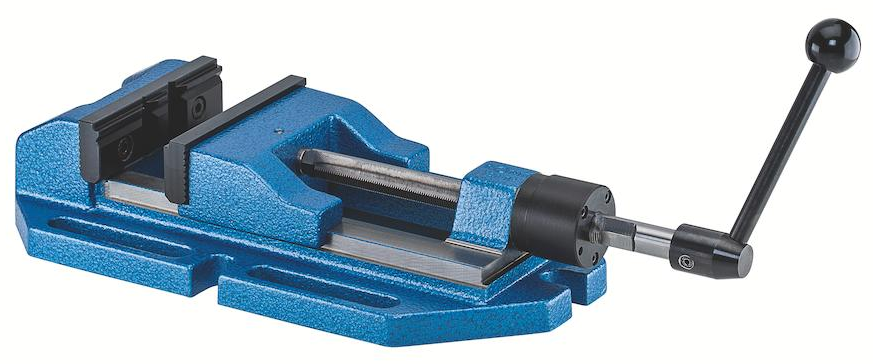

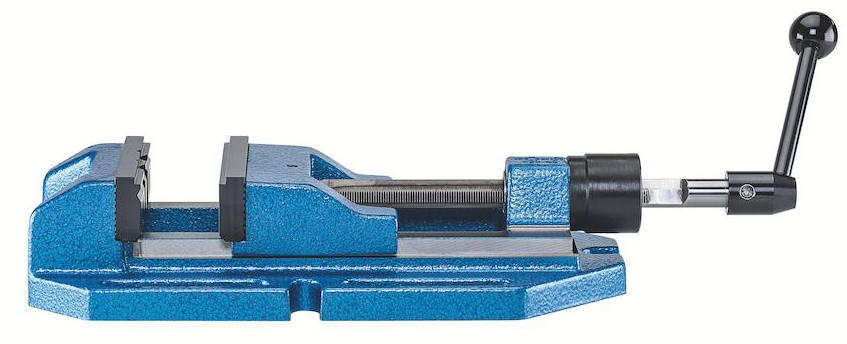

BSS, with V-jaw and normal jaw SBO

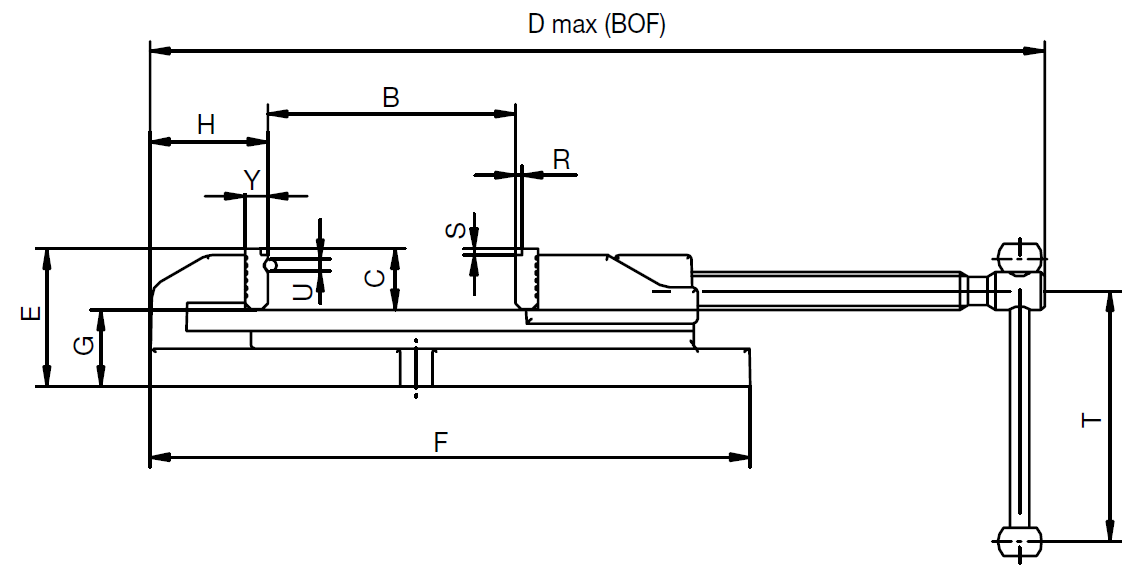

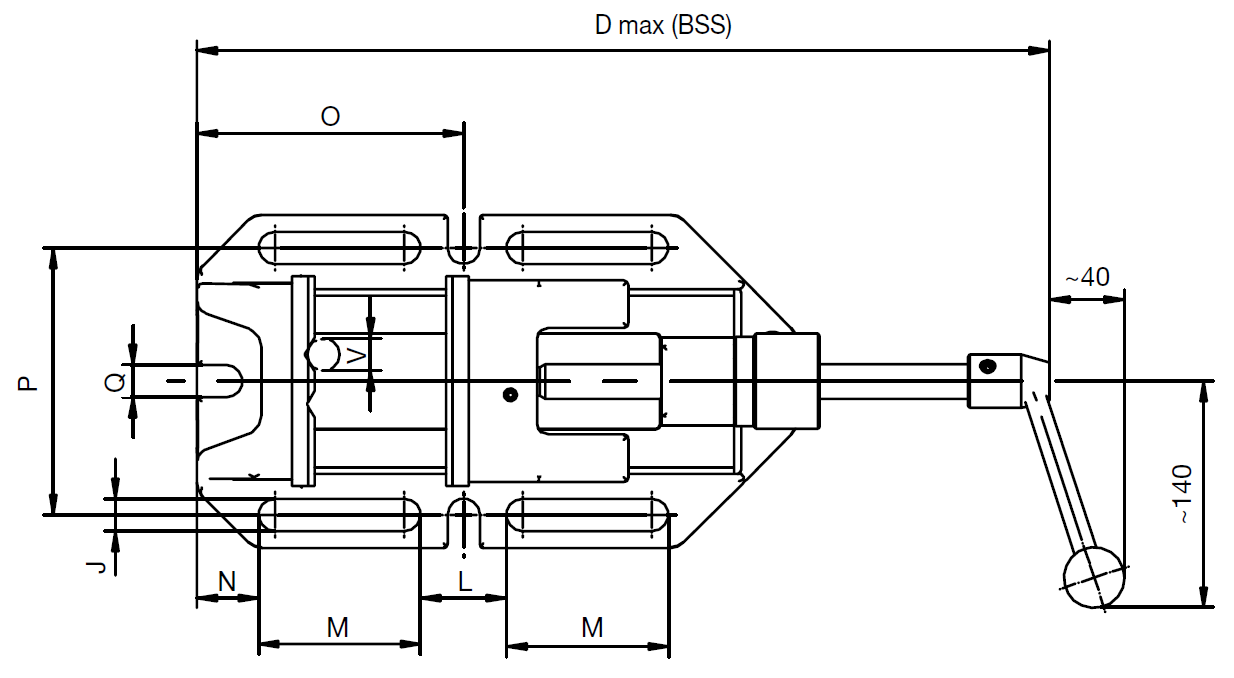

Item No.	134158	134159
Size	2	3
Jaw width A mm	110	135
Clamping capacity B mm	130	160
Jaw height C mm	32	40
Total length D mm	510	587
Total height E mm	72.5	80.5
Total height F mm	315	365
Total height G mm	40	40
Total height H mm	62	71
Total height J mm	17	17
Total height K mm	175	205
Total height L mm	45	45
Total height M mm	85	100
Total height N mm	32.5	45.5
Total height O mm	140	168
Total height P mm	140	170
Total height Q mm	17	17
Total height R mm	3.5	4
Total height S mm	3.5	4.5
Total height T mm	125	125
Horizontal U mm	3 - 12	3 - 13
Vertical V mm	5 - 32	6 - 40
Vertical Y mm	12	16
Jaw Connection Dimensions a mm	63	80
Jaw Connection Dimensions b mm	13.6	15.6
Jaw Connection Dimensions c mm	M6	M8
Weight kg	9.5	13.5

Accessories BMS

A37
V-jaw and normal jaw SBO, unhardened and burnished, with workpiece support for BOF and BSS

Item no.	Scope of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
332714	set	1	90	24.8	4-17	4-25
317259	set	2	110	31.8	3-12	5-32
317260	set	3	135	39.8	3-13	6-40
317261	set	4	160	49.8	5-22	7-48

Including fixing screws
