Ferg Threading Taps W622

Threading Taps

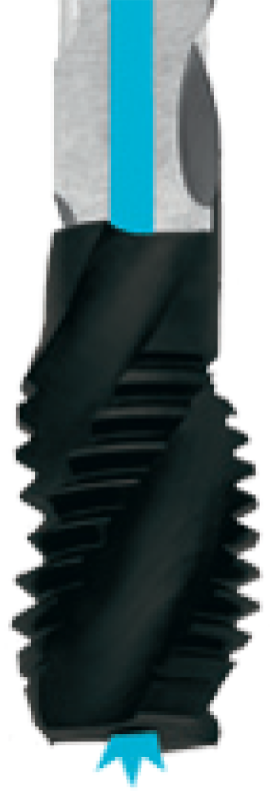

MACHINE TAP WITH INTERNAL COOLANT FEED AND AXIAL EXIT
Facilitates chip evacuation and improves cooling in cutting area.
Machine tap with 38º right-hand spiral flutes, driving the chips to the back,
      increased flute length.      Threaded length: 10 threads.
Starting from the 5th thread, back tapered thread portion to reduce friction
      and improve swarf clearance.
Chamfer lead 2.5 threads (DIN-Form C).      Rake angle 8º÷10º.

≤ 3 x d₁

DIN 371	DIN 376 - 374 - 5156	COATING
W622A	W622	TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)	Special High speed steel class E with vanadium	Machine tap with 38° right- hand spiral flutes, driving the chips to the back
				Machine tap with internal axial coolant feed
				Starting from the 5th thread, back tapered thread portion to reduce friction and improve swarf clearance
				Form C (chamfer lead 2-3 threads)

We reserve the right to make technical changes.
