Threading Taps

Any material with at least 12% elongation

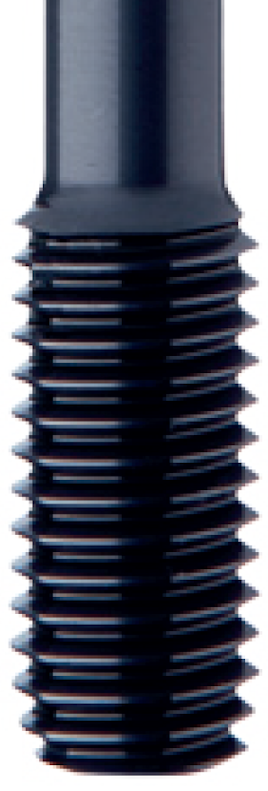

(cold forming)		  Thread former machine tap.
 Chamfer lead 2.5 threads (DIN-Form C).
 For through holes and deep blind holes in materials < 600 N/mm²
      with an elongation coefficient of at least 12%.


      ≤ 3 x d1Blind and Through hole

DIN 2174 - 2184
DIN 2174 - 2184 - 2189
COATING
AC173A AC173 AlCrN coating
(Aluminium Chrome Nitride)		 High speed steel class E with 3%
vanadium 1.3344 (EMo5V3) (M-3/2)		 Thread former machine tap
A173A A173 TiAlN coating
(Titanium Aluminium Nitride)		   Form C (chamfer lead
2-3 threads)
T173A T173 TiN coating (Titanium nitride)


We reserve the right to make technical changes.
