Threading Taps

Any material with at least 12% elongation

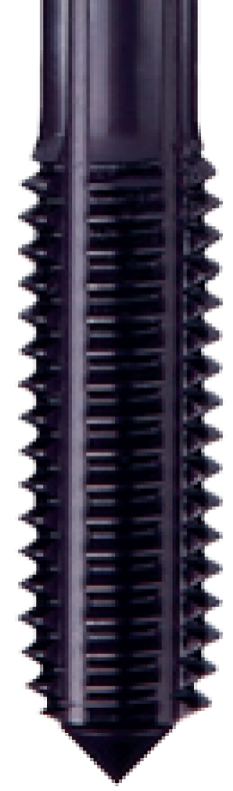

(cold forming)		  Thread former machine tap, with oil grooves.
 Chamfer lead 2.5 threads (DIN-Form C).
 For through holes and deep blind holes in materials < 850 N/mm²
      with an elongation coefficient of at least 12%.


      ≤ 3 x d1Blind and Through hole

DIN 2174 - 2184
DIN 2174 - 2184 - 2189
COATING
AC175A AC175 AlCrN coating
(Aluminium Chrome Nitride)		 Special High speed steel
class E with vanadium		 Thread former machine tap,
with oil grooves
A175A A175 TiAlN coating
(Titanium Aluminium Nitride)		   Form C (chamfer lead
2-3 threads)
T175A T175 TiN coating (Titanium nitride)
DL175A DL175 Diamond-like carbon


We reserve the right to make technical changes.
