Ferg Threading Taps T632

Threading Taps

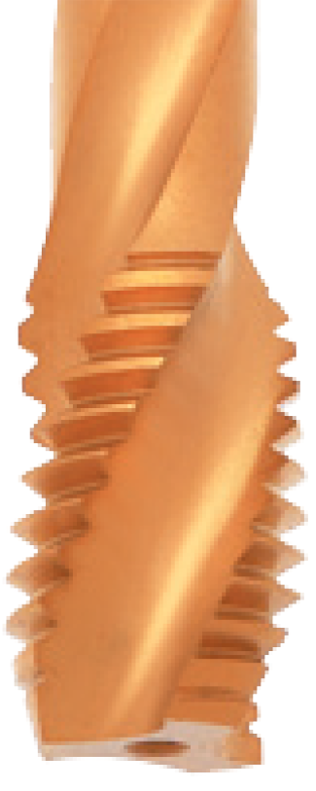

Machine tap with 30º right-hand spiral flutes.
Threaded length: 10 threads.
Starting from the 5th thread, back tapered thread portion to reduce friction
and improve swarf clearance.
Chamfer lead 2.5 threads (DIN-Form C). Rake angle 8º÷10º.

≤ 2 x d₁

DIN 371	DIN 376 - 374 - 5156	COATING
T632A	T632	TiN coating (Titanium nitride)	Special High speed steel class E with vanadium	Machine tap with 30° right- hand spiral flutes, driving the chips to the back
A632A	A632	TiAlN coating (Titanium Aluminium Nitride)		Starting from the 5th thread, back tapered thread portion to reduce friction and improve swarf clearance
AC632A	AC632	AlCrN coating (Aluminium Chrome Nitride)		Form C (chamfer lead 2-3 threads)
632A	632	Bright (without Coating or without Surface treatment)

We reserve the right to make technical changes.
