Ferg Threading Taps T675

Threading Taps

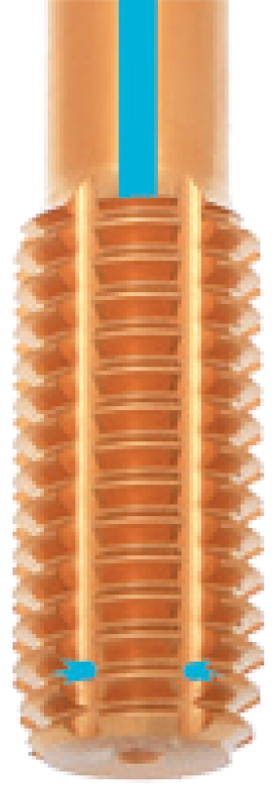

THREAD FORMER MACHINE TAP, WITH INTERNAL COOLANT
      FEED AND RADIAL EXIT.
Facilitates chip evacuation and improves cooling in cutting area.
With oil grooves.      Chamfer lead 2.5 threads (DIN-Form C).
For through holes and deep blind holes in materials < 850 N/mm²
      with an elongation coefficient of at least 12%.

≤ 3 x d₁

DIN 2174 - 2184	DIN 2174 - 2184 - 2189	COATING
T675A	T675	TiN coating (Titanium nitride)	Special High speed steel class E with vanadium	Thread former machine tap, with oil grooves
A675A	A675	TiAlN coating (Titanium Aluminium Nitride)		Machine tap with internal radial coolant feed
AC675A	AC675	AlCrN coating (Aluminium Chrome Nitride)		Form C (chamfer lead 2-3 threads)
DL675A	DL675	Diamond-like carbon

We reserve the right to make technical changes.
