Threading Taps

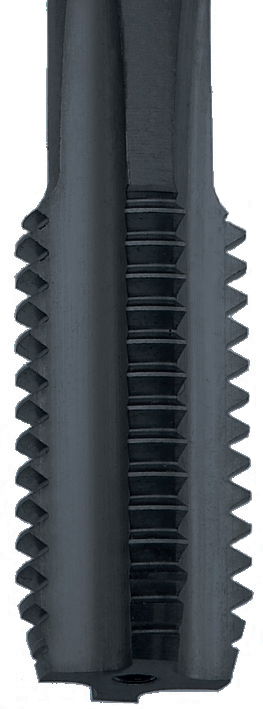

Grey cast iron  Machine tap with straight flutes.
 Chamfer lead 2.5 threads (DIN-Form C).
 Rake angle 3º÷5º.


      ≤ 3 x d1Blind and Through hole

DIN 371
DIN 376 - 374 - 5156
COATING
A160A A160 TiAlN coating
(Titanium Aluminium Nitride)		 High speed steel class E with 3%
vanadium 1.3344 (EMo5V3) (M-3/2)		 Machine tap with
straight flutes
        Form C (chamfer lead
2-3 threads)


We reserve the right to make technical changes.
