Threading Taps

Grey cast iron  MACHINE TAP WITH INTERNAL COOLANT FEED AND AXIAL EXIT.
 Facilitates chip evacuation and improves cooling in cutting area.
 With straight flutes.
 Chamfer lead 2.5 threads (DIN-Form C).       Rake angle 3º÷5º.


      ≤ 3 x d1Blind and Through hole

DIN 371
DIN 376 - 374 - 5156
COATING
A660A A660 TiAlN coating
(Titanium Aluminium Nitride)		 High speed steel class E with 3%
vanadium 1.3344 (EMo5V3) (M-3/2)		 Machine tap with
straight flutes

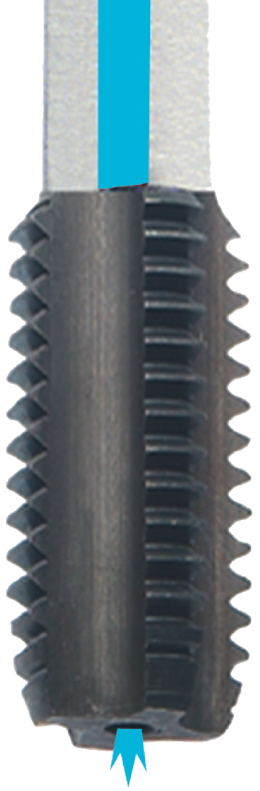

        Machine tap with internal
axial coolant feed
        Form C (chamfer lead
2-3 threads)


We reserve the right to make technical changes.
