Supermini 105 |
| HSKT40 Toolholder | ||||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
 HSK-T |
||||||
 R = right hand version shown L = right hand version |
 |

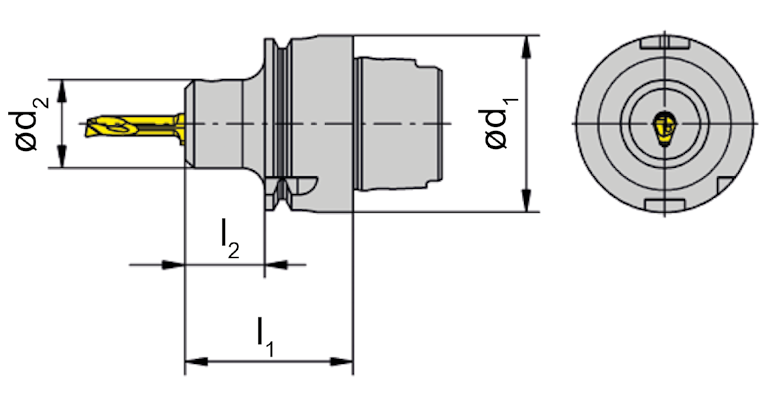

| Part number | d1 | l1 | l2 | d2 | HWS |
| HSKT40.LB105.20.1.02 | 40 | 48 | 28 | 20 | 105223 • 105224 • 105225 |
| HSKT40.RB105.20.1.02 | 40 | 48 | 28 | 20 | 105223 • 105224 • 105225 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| HSKT40... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
