Supermini 105 |
| Insert Ø ≥ 3 mm | |||||||||
 Internal Grooving with Chamfer |
 Internal Boring and Grooving Chamfer |
 Internal Chamfering |
 Internal Coolant |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||

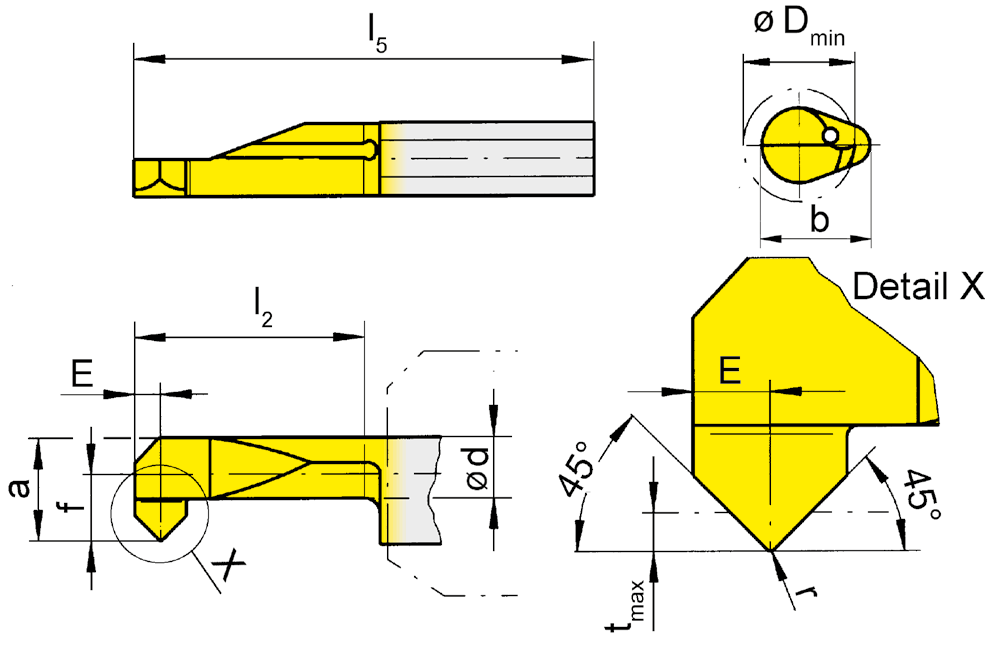

| Part number | r | f | E | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | TH35 | TN35 |
| R105.4545.1.3 | 0.2 | 1.4 | 1 | 2.7 | 1.9 | 5.9 | 10 | 25 | 0.5 | 3 | 105123 | ▲ | |||
| R105.4545.1.4 | 0.2 | 1.9 | 1 | 3.7 | 2.8 | 6.4 | 10 | 25 | 0.7 | 4 | 105124 | ▲ | |||
| R105.4545.2.5 | 0.2 | 2.3 | 1 | 4.7 | 3.5 | 7 | 15 | 30 | 0.7 | 5 | 105125 | ▲ | ▲ | ||
| R105.4545.3.7 | 0.2 | 4 | 1 | 6.4 | 4.7 | 7 | 20 | 35 | 0.7 | 7 | 105125 | ▲ | ▲ | ||
| L105.4545.1.3 | 0.2 | 1.4 | 1 | 2.7 | 1.9 | 5.9 | 10 | 25 | 0.5 | 3 | 105123 | ▲ | |||
| L105.4545.1.4 | 0.2 | 1.9 | 1 | 3.7 | 2.8 | 6.4 | 10 | 25 | 0.7 | 4 | 105124 | ▲ | |||
| L105.4545.2.5 | 0.2 | 2.3 | 1 | 4.7 | 3.5 | 7 | 15 | 30 | 0.7 | 5 | 105125 | ▲ | ▲ | ||
| L105.4545.3.7 | 0.2 | 4 | 1 | 6.4 | 4.7 | 7 | 20 | 35 | 0.7 | 7 | 105125 | ▲ | ▲ | ||
| P | |||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
