Supermini 105 |
| Insert Ø ≥ 6 mm | |||||||||
 Internal Grooving |
 Internal Coolant |
||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||

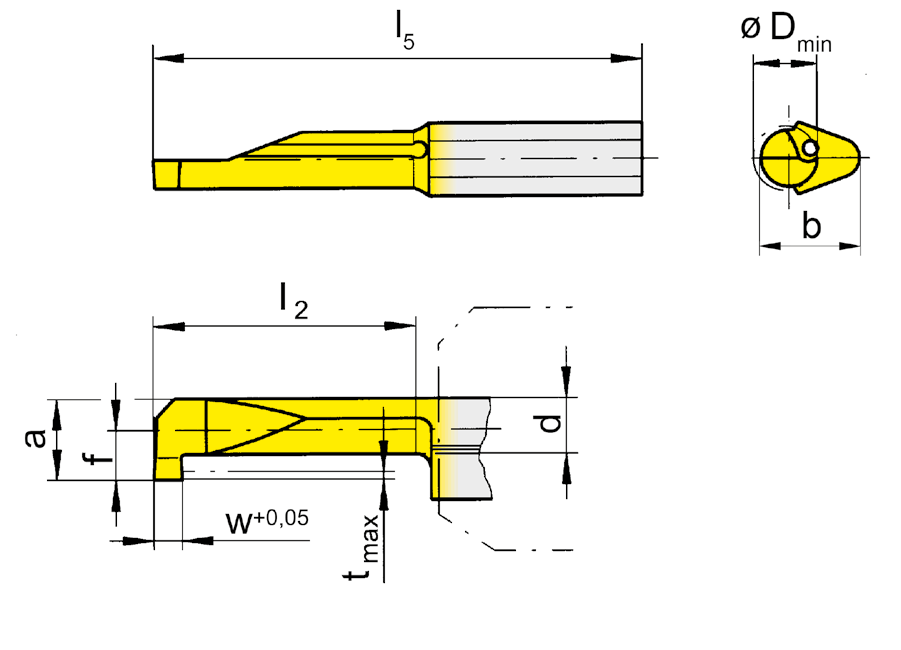

| Part number | w | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | TH35 | TN35 |
| R105.0100.4.6 | 1 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| R105.0100.5.6 | 1 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| R105.0150.4.6 | 1.5 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| R105.0150.5.6 | 1.5 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| R105.0200.4.6 | 2 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| R105.0200.5.6 | 2 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | |
| L105.0100.4.6 | 1 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ⃤ | ▲ | ⃤ | |
| L105.0100.5.6 | 1 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0150.4.6 | 1.5 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ▲ | |
| L105.0150.5.6 | 1.5 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ▲ | |
| L105.0200.4.6 | 2 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0200.5.6 | 2 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ▲ | |
| P | ||||||||||||||
| M | ||||||||||||||
| K | ||||||||||||||
| N | ||||||||||||||
| S | ||||||||||||||
| H | ||||||||||||||
We reserve the right to make technical changes.
