Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

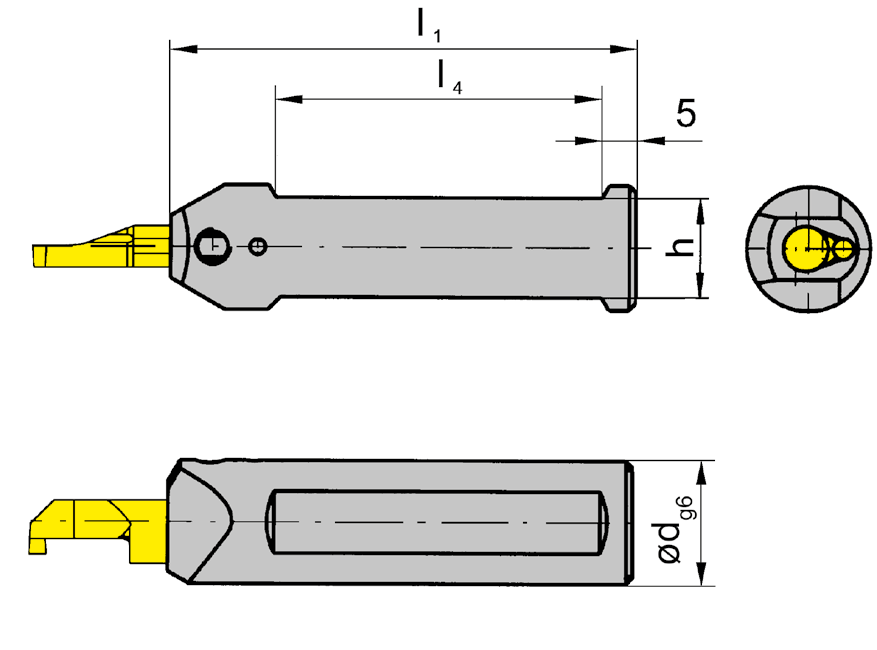

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | HWS |
| B105.0010.01 | 10 | 75 | 9 | 50 | 105123 • 105124 • 105125 |
| B105.0012.01 | 12 | 75 | 11 | 50 | 105123 • 105124 • 105125 |
| B105.0016.01 | 16 | 75 | 14 | 50 | 105123 • 105124 • 105125 |
| B105.0020.01 | 20 | 90 | 18 | 55 | 105123 • 105124 • 105125 |
| B105.0022.01 | 22 | 90 | 20 | 55 | 105123 • 105124 • 105125 |
| B105.0025.01 | 25 | 100 | 23 | 55 | 105123 • 105124 • 105125 |
| B105.0028.01 | 28 | 120 | 26 | 72 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
