Supermini 105 |
| B105 Toolholder | |||||||||
 Face Clamping |
 Face Grooving |
 Internal Boring |
 Internal Grooving |
 Internal Coolant |
|||||
 |
 |

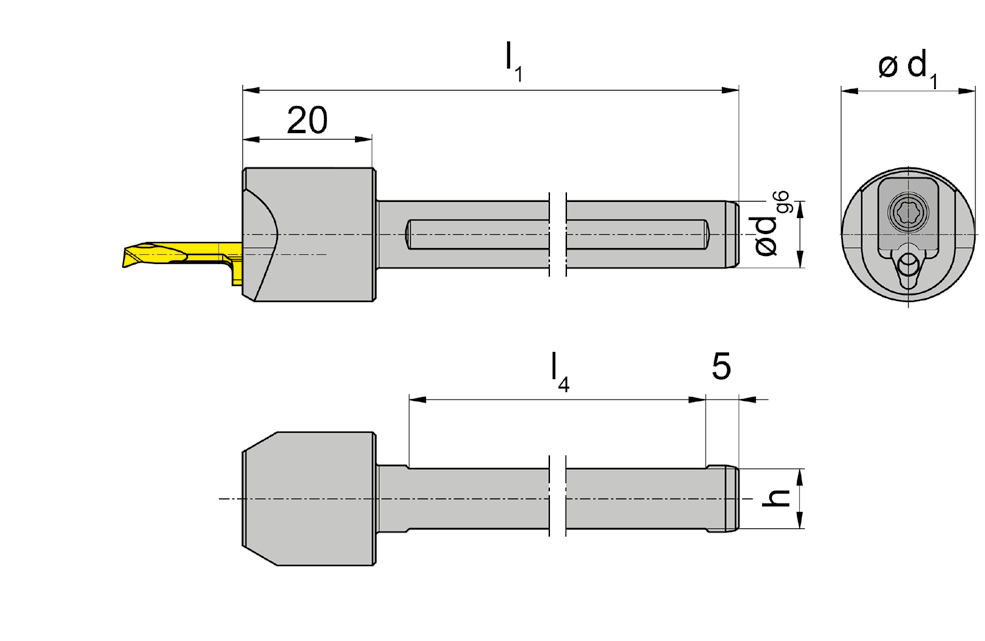

| Part number | d | h | l1 | l4 | d1 | HWS |
| B105.0010.S.SET | 10 | 9 | 80 | 50 | 20 | 105123 • 105124 • 105125 |
| B105.0012.S.SET | 12 | 11 | 80 | 50 | 20 | 105123 • 105124 • 105125 |
| B105.0016.S.SET | 16 | 14 | 80 | 50 | 20 | 105123 • 105124 • 105125 |
| B105.0020.S.SET | 20 | 18 | 90 | 55 | 20 | 105123 • 105124 • 105125 |
| B105.0022.S.SET | 22 | 20 | 90 | 55 | 22 | 105123 • 105124 • 105125 |
| B105.0025.S.SET | 25 | 23 | 100 | 55 | 25 | 105123 • 105124 • 105125 |
| B105.0028.S.SET | 28 | 26 | 120 | 55 | 28 | 105123 • 105124 • 105125 |
Note: One toolholder set includes 3 clamping elements each |
||||||
| Spare Parts | Toolholder | Clamping Element | TORX PLUS® Wrench |
| B105... | 010.0105.03 | T15PW | |
| 010.0105.04 | |||
| 010.0105.05 |
We reserve the right to make technical changes.
