Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

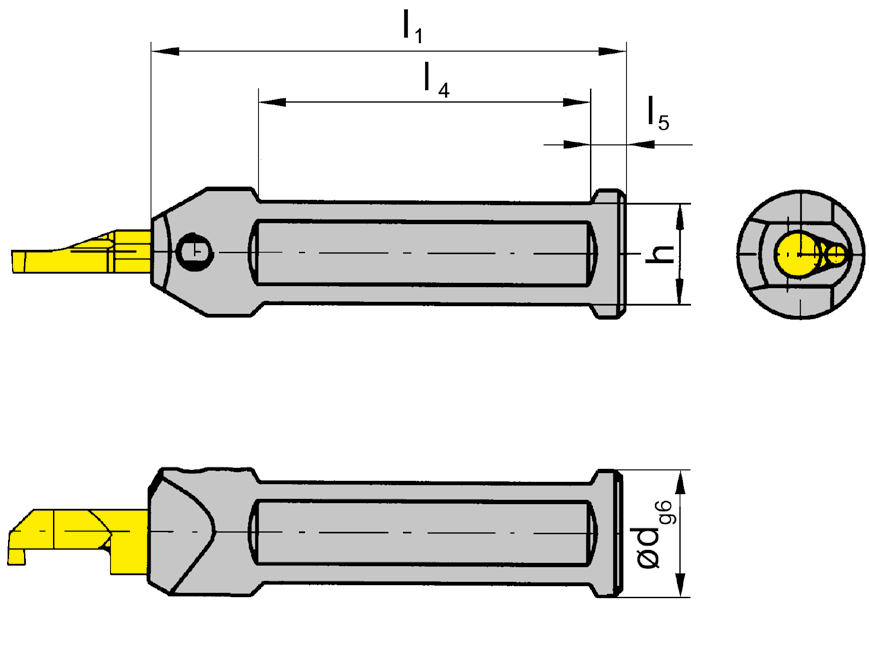

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | l5 | HWS |
| B105.0022.1.2.01 | 22 | 120 | 20 | 72 | 5 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B105.0022.1.2.01 | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
