Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
|||||||

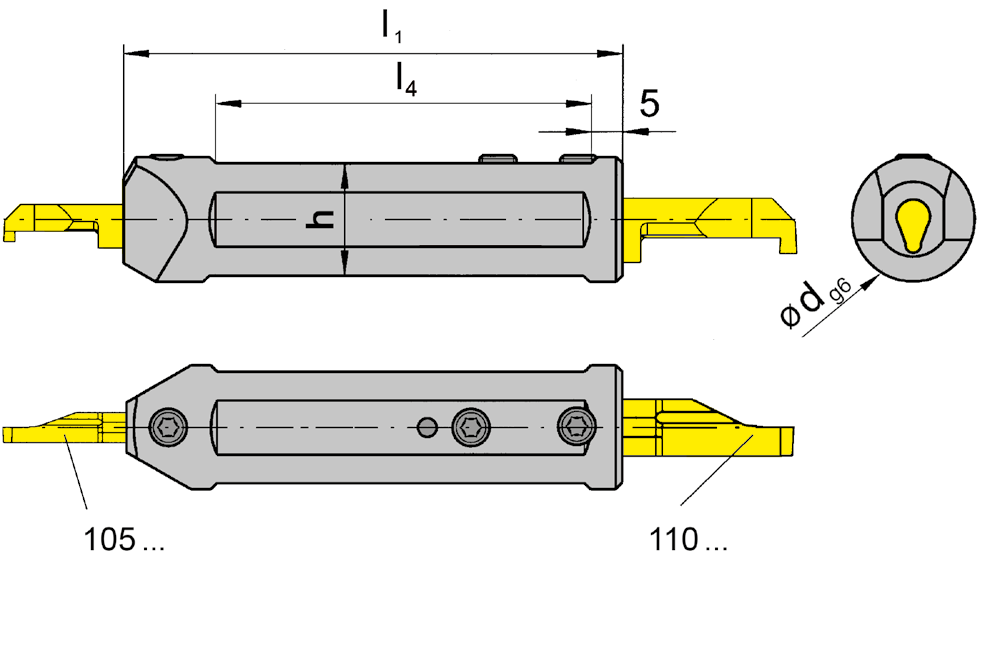

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | HWS |
| B105.0020.1.10 | 20 | 80 | 18 | 60 | 105123 • 105124 • 105125 • 110260 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B105.0020.1.10 | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
