Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

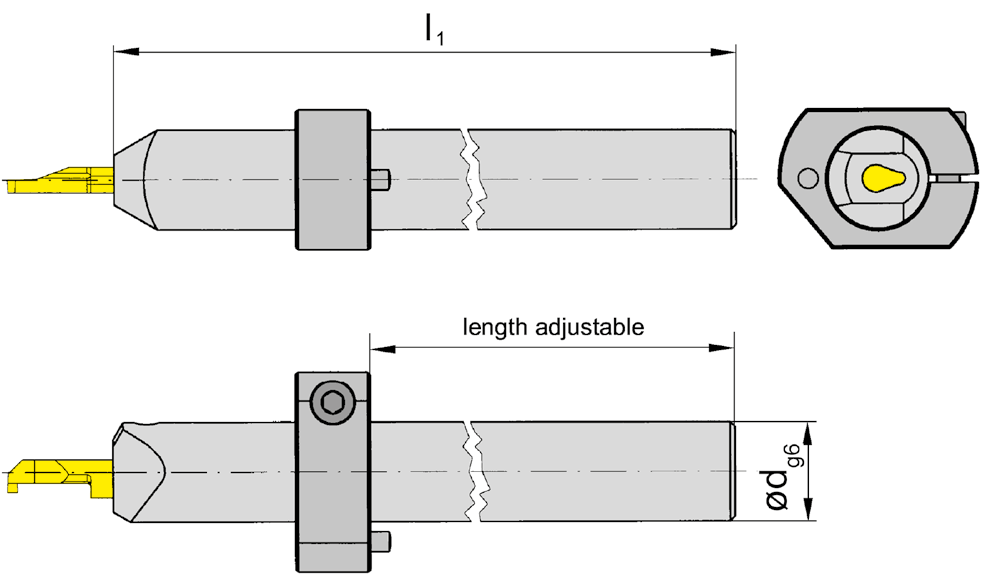

 Picture = right hand cutting version |
 |
| Part number | d | l1 | HWS |
| B105.0020.2.01 | 20 | 150 | 105123 • 105124 • 105125 |
| B105.0025.2.01 | 25 | 150 | 105123 • 105124 • 105125 |

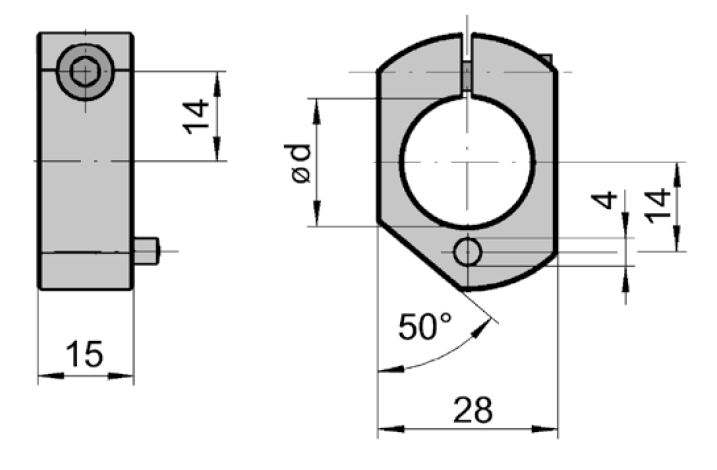

Adjusting ring is not combined with the toolholder - separate order required! |
|||
 |
|||
| Adjusting ring | d | Type of machine | |
| 020.0020.1665 | 20 | Tornos | |
| 020.0025.2234 | 25 | Tornos | |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
