Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

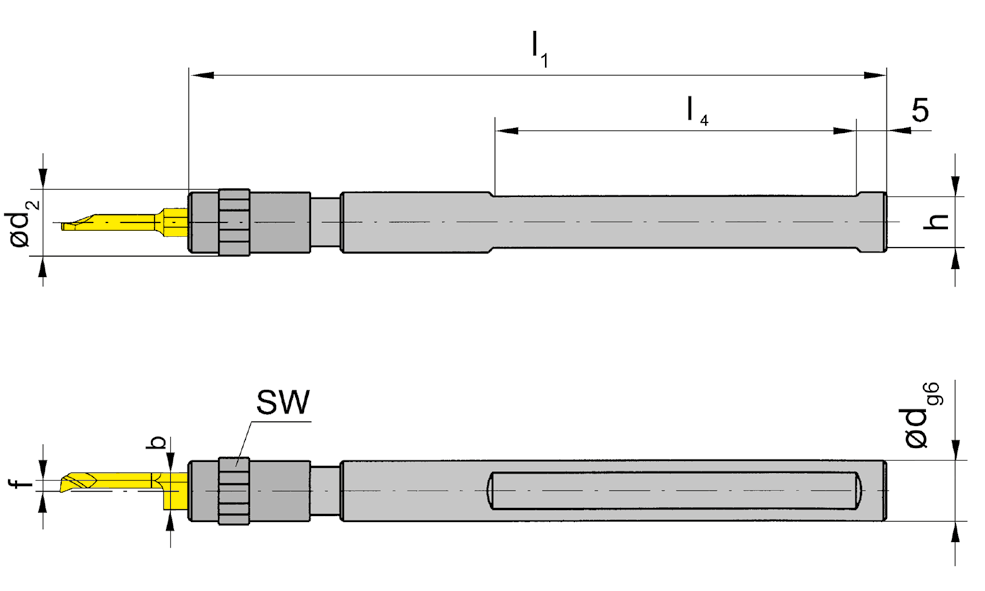

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | f | d2 | SW | b | HWS |
| B105.0010.9.01 | 10 | 100 | 9 | 50 | 1.6 | 11 | 10 | 5.9 | 105123 |
| B105.0012.11.01 | 12 | 100 | 11 | 50 | 1.2 | 16 | 13 | 7 | 105125 |
| B105.0016.11.01 | 16 | 100 | 15 | 50 | 1.2 | 16 | 13 | 7 | 105125 |
b = Height of insert |
|||||||||
| Spare Parts | Toolholder | Clamping Nut | |
| B105.0010.9.01 | 020.0010.1719 | ||
| B105.00... | 020.0016.1999 |
We reserve the right to make technical changes.
