Supermini 105 |
| B105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 STAR |
 Internal Coolant |
|||||
 L = left hand version |
 |

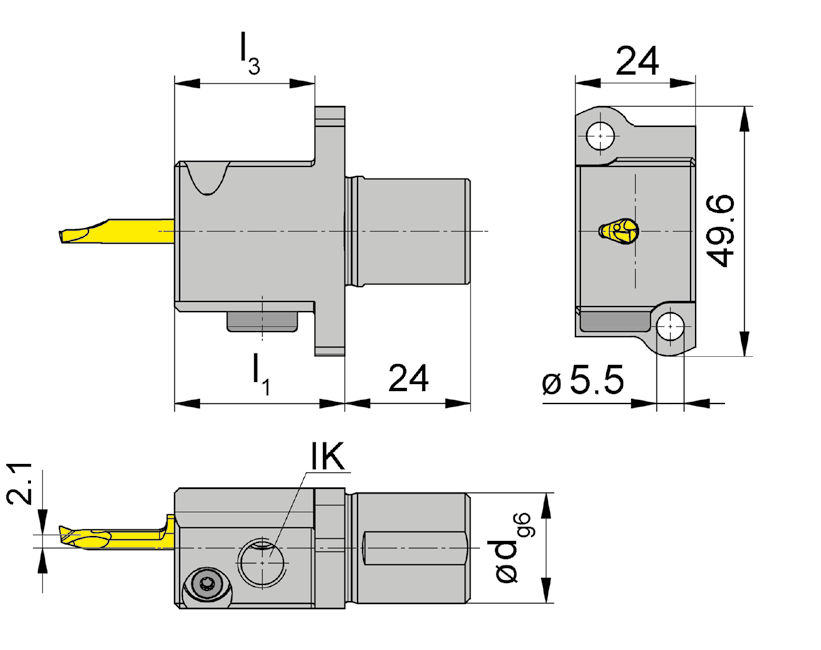

| Part number | d | l1 | l3 | HWS | HMS |
| LB105.A022.26.31 | 22 | 35 | 29 | 105123 • 105124 • 105125 | Star |
Swiss Type Machines Star: ECAS-12/20, SB16D/E, SR-20, SR20J/JN, RS-20RII, RS-20RIII, RS-20RIV, RS-32J/JN, SW-12RII |
|||||
| Spare Parts | Toolholder | TORX PLUS® Wrench | Screw Plug |
| LB105.A022.26.31 | T10PL | 18.908 |
We reserve the right to make technical changes.
