Supermini 105 |
| B105 Toolholder | |||||||||
 Face Grooving |
 Internal Coolant |
||||||||
 L = left hand version R = right hand version |
 |

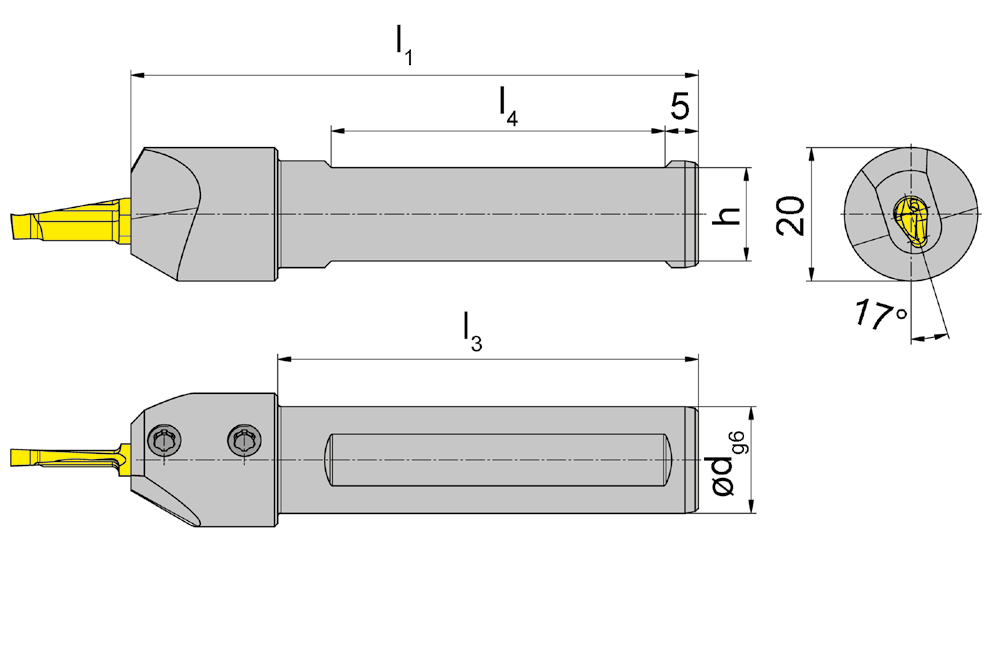

| Part number | d | l1 | l3 | h | l4 | HWS |
| RB105.0016.12.2 | 16 | 85 | 63 | 14 | 50 | 105225 |
| RB105.0020.12.2 | 20 | 100 | - | 18 | 55 | 105225 |
| LB105.0016.12.2 | 16 | 85 | 63 | 14 | 50 | 105225 |
| LB105.0020.12.2 | 20 | 100 | - | 18 | 55 | 105225 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LB105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
