Supermini 105 |
| B105C Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 R = right hand version L = left hand version |
 |

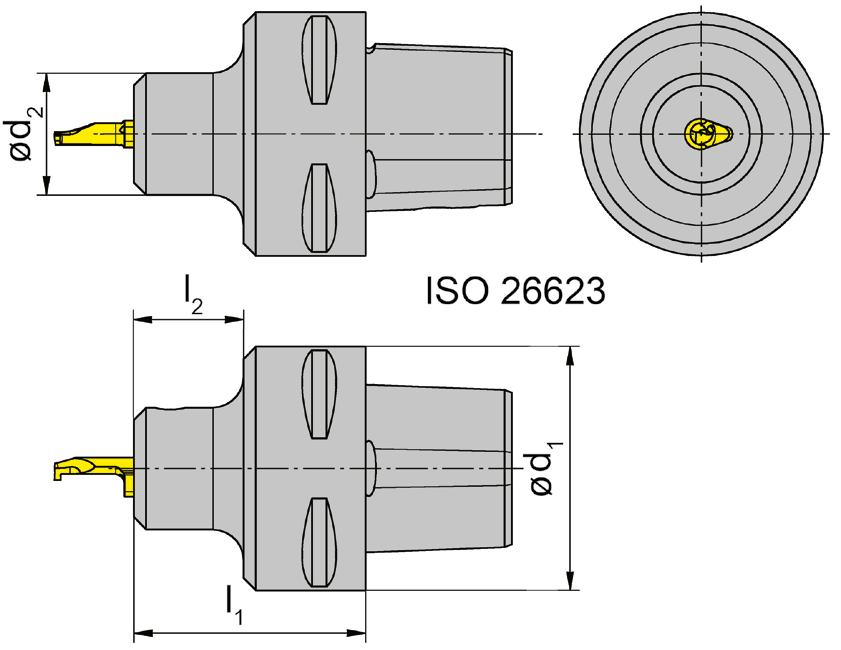

| Part number | d1 | d2 | l1 | l2 | HWS |
| RB105.00C3.20.1.01 | 32 | 20 | 30 | 15 | 105123 • 105124 • 105125 |
| RB105.00C4.20.1.01 | 40 | 20 | 38 | 18 | 105123 • 105124 • 105125 |
| RB105.00C5.20.1.01 | 50 | 20 | 38 | 18 | 105123 • 105124 • 105125 |
| RB105.00C6.20.1.01 | 63 | 20 | 42 | 20 | 105123 • 105124 • 105125 |
| LB105.00C3.20.1.01 | 32 | 20 | 30 | 15 | 105123 • 105124 • 105125 |
| LB105.00C4.20.1.01 | 40 | 20 | 38 | 18 | 105123 • 105124 • 105125 |
| LB105.00C5.20.1.01 | 50 | 20 | 38 | 18 | 105123 • 105124 • 105125 |
| LB105.00C6.20.1.01 | 63 | 20 | 42 | 20 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LB105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
