Supermini 105 |
| B105C Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 |
 |

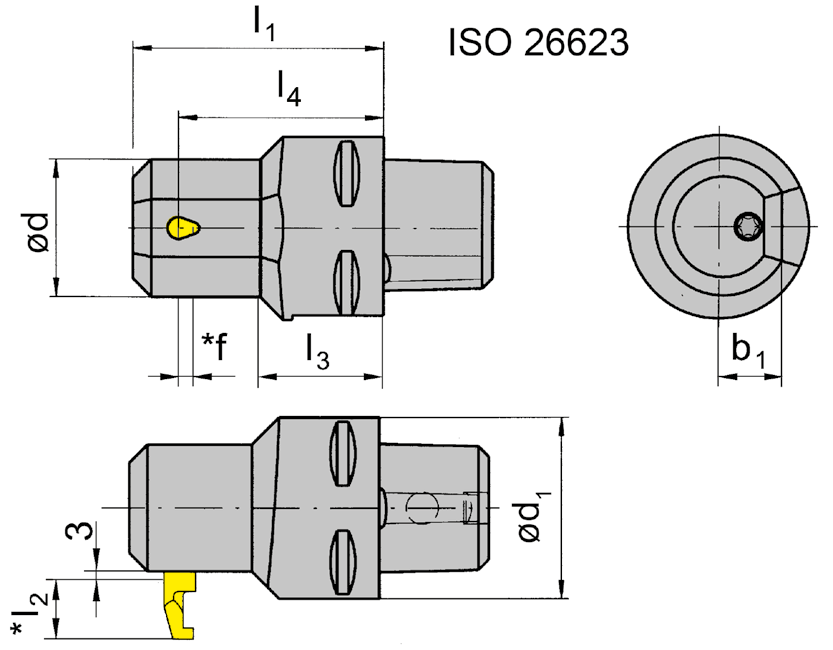

| Part number | d1 | l3 | d | l1 | l4 | b1 | HWS | |
| RB105.00C3.2.2.01 | 32 | 17 | 30 | 55 | 45 | 14 | 105123 • 105124 • 105125 | |
| RB105.00C3.2.2.02 | 32 | 15 | 36 | 55 | 45 | 18 | 105123 • 105124 • 105125 | |
| RB105.00C4.2.2.01 | 40 | 26 | 30 | 55 | 45 | 14 | 105123 • 105124 • 105125 | |
| RB105.00C4.2.2.02 | 40 | 22 | 36 | 55 | 45 | 18 | 105123 • 105124 • 105125 | |
* f, l2 see inserts type 105 |
||||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| RB105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
