Supermini 105 |
| B105TS Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 R = right hand version L = left hand version |
 |

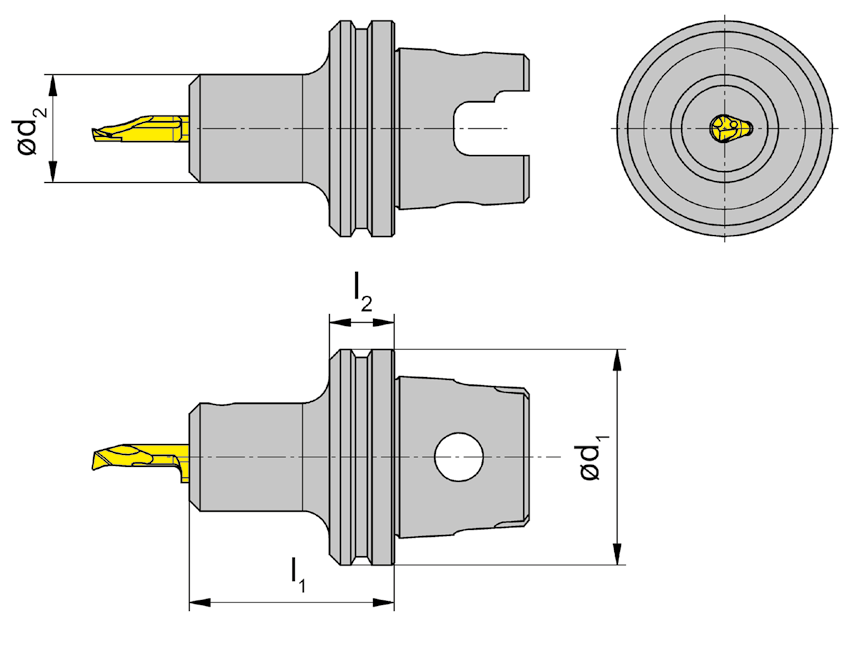

| Part number | d1 | d2 | l1 | l2 | HWS |
| RB105.TS40.20.1.01 | 40 | 20 | 38 | 26 | 105123 • 105124 • 105125 |
| LB105.TS40.20.1.01 | 40 | 20 | 38 | 26 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LB105.TS40.20.1.01 | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
