Supermini 105 |
| BU105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

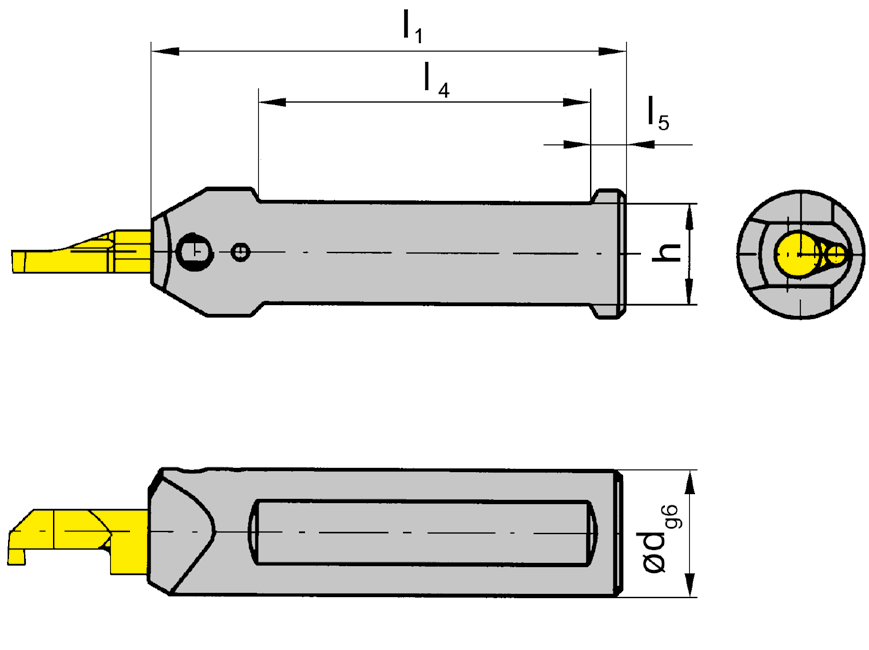

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | l5 | HWS |
| BU105.0750.5.01 | 3/4" | 90 | 17.04 | 70 | 5 | 105123 • 105124 • 105125 |
| BU105.0750.5.3.01 | 3/4" | 152.5 | 17.05 | 70 | 5 | 105123 • 105124 • 105125 |
| BU105.1000.5.01 | 1" | 90 | 23.4 | 65 | 5 | 105123 • 105124 • 105125 |
| BU105.1000.5.3.01 | 1" | 152.5 | 23.4 | 70 | 5 | 105123 • 105124 • 105125 |
Dimensions in inch and mm Adapter of cooling M12x1.5 for Traub machines Coolant supply is not included. |
||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| BU105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
