Supermini 105 |
| BU105 Toolholder | |||||||||
 Face Clamping |
 Face Grooving |
 Internal Boring |
 Internal Grooving |
 Internal Coolant |
|||||

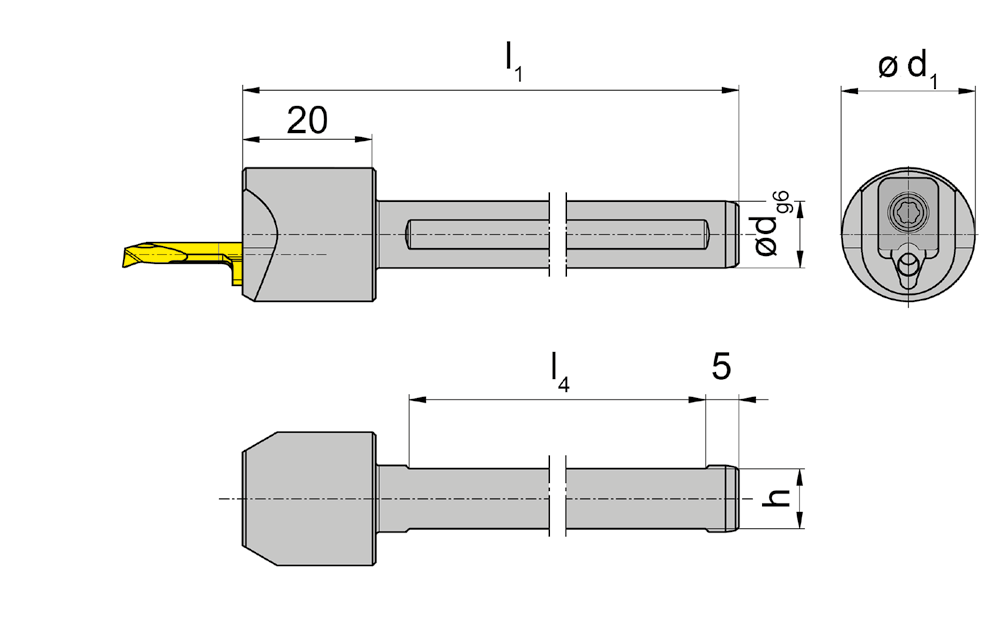

 Picture = right hand cutting version |
 |
| Part number | d | h | l1 | l4 | d1 | HWS | ||
| BU105.0500.S.SET | .500" | 10.7 | 80 | 50 | 20 | 105123 • 105124 • 105125 | ||
| BU105.0625.S.SET | .625" | 13.875 | 80 | 50 | 20 | 105123 • 105124 • 105125 | ||
| BU105.0750.S.SET | .750" | 17.05 | 90 | 55 | .750" | 105123 • 105124 • 105125 | ||
| BU105.1000.S.SET | 1" | 23.4 | 90 | 55 | 1" | 105123 • 105124 • 105125 | ||
Dimensions in inch and mm Note: One toolholder set includes 3 clamping elements each |
||||||||
| Spare Parts | Toolholder | Clamping Element | TORX PLUS® Wrench |
| BU105... | 010.0105.03 | T15PW | |
| 010.0105.04 | |||
| 010.0105.05 |
We reserve the right to make technical changes.
