Supermini 105 |
| H105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
|||||||
 L = left hand version R = right hand version |
 |

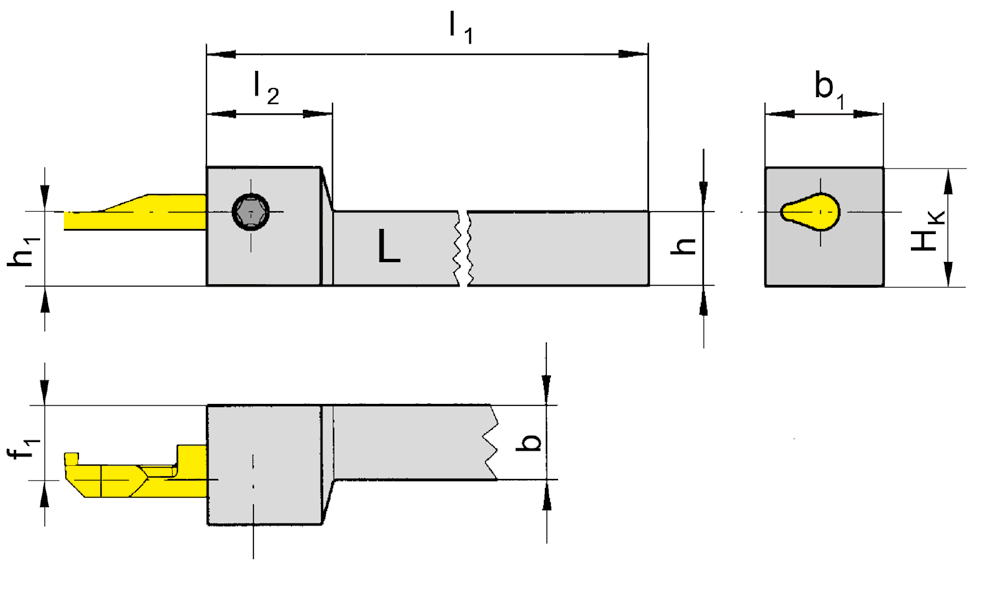

| Part number | h | b | l1 | h1 | b1 | f1 | HK | l2 | HWS |
| RH105.0808.01 | 8 | 8 | 90 | 8 | 16 | 7.5 | 14 | 17 | 105123 • 105124 • 105125 |
| RH105.1010.01 | 10 | 10 | 90 | 10 | 16 | 7.5 | 16 | 17 | 105123 • 105124 • 105125 |
| RH105.1212.01 | 12 | 12 | 90 | 12 | 16 | 7.5 | 18 | 17 | 105123 • 105124 • 105125 |
| RH105.1616.01 | 16 | 16 | 110 | 16 | 16 | 7.5 | 22 | 17 | 105123 • 105124 • 105125 |
| LH105.0808.01 | 8 | 8 | 90 | 8 | 16 | 7.5 | 14 | 17 | 105123 • 105124 • 105125 |
| LH105.1010.01 | 10 | 10 | 90 | 10 | 16 | 7.5 | 16 | 17 | 105123 • 105124 • 105125 |
| LH105.1212.01 | 12 | 12 | 90 | 12 | 16 | 7.5 | 18 | 17 | 105123 • 105124 • 105125 |
| LH105.1616.01 | 16 | 16 | 110 | 16 | 16 | 7.5 | 22 | 17 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LH105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
