Supermini 105 |
| HC105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
|||||||
 R = right hand version L = left hand version |
 |

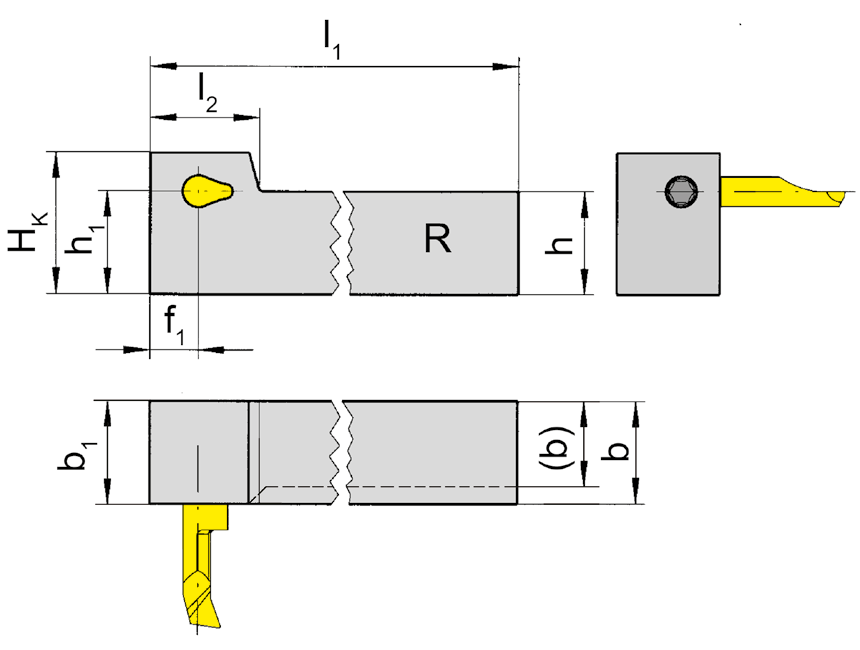

| Part number | h | b | l1 | l2 | h1 | b1 | f1 | HK | HWS |
| RHC105.1212.01 | 12 | 12 | 90 | 17 | 12 | 16 | 7.5 | 18 | 105123 • 105124 • 105125 |
| RHC105.1616.01 | 16 | 16 | 130 | 17 | 16 | 16 | 7.5 | 22 | 105123 • 105124 • 105125 |
| LHC105.1212.01 | 12 | 12 | 90 | 17 | 12 | 16 | 7.5 | 18 | 105123 • 105124 • 105125 |
| LHC105.1616.01 | 16 | 16 | 130 | 17 | 16 | 16 | 7.5 | 22 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LHC105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
