Supermini 105 |
| HC105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 R = right hand version L = left hand version |
 |
| Part number | h | b | l1 | l3 | h1 | b1 | f1 | Da max | HK | l2 | HWS |
| RHC105.0808.21 | 8 | 8 | 99 | 29 | 8 | 32 | 19 | 26 | 13 | 18 | 105123 • 105124 • 105125 |
| RHC105.1010.11 | 10 | 10 | 99 | 29 | 10 | 22.7 | 19 | 26 | 16 | 8 | 105123 • 105124 • 105125 |
| RHC105.1010.21 | 10 | 10 | 99 | 29 | 10 | 38 | 19 | 26 | 16 | 18 | 105123 • 105124 • 105125 |
| RHC105.1010.41 | 10 | 10 | 99 | 29 | 10 | 48 | 19 | 26 | 16 | 28 | 105123 • 105124 • 105125 |
| RHC105.1212.21 | 12 | 12 | 99 | 29 | 12 | 38 | 19 | 26 | 18 | 18 | 105123 • 105124 • 105125 |
| RHC105.1212.41 | 12 | 12 | 99 | 29 | 12 | 48 | 19 | 26 | 18 | 28 | 105123 • 105124 • 105125 |
| RHC105.1616.21 | 16 | 16 | 104 | 34 | 16 | 38 | 24 | 36 | 22 | 18 | 105123 • 105124 • 105125 |
| RHC105.1616.41 | 16 | 16 | 104 | 34 | 16 | 48 | 24 | 36 | 22 | 28 | 105123 • 105124 • 105125 |
| LHC105.0808.21 | 8 | 8 | 99 | 29 | 8 | 32 | 19 | 26 | 13 | 18 | 105123 • 105124 • 105125 |
| LHC105.1212.21 | 12 | 12 | 99 | 29 | 12 | 38 | 19 | 26 | 18 | 18 | 105123 • 105124 • 105125 |
| LHC105.1616.21 | 16 | 16 | 104 | 34 | 16 | 38 | 24 | 36 | 22 | 18 | 105123 • 105124 • 105125 |

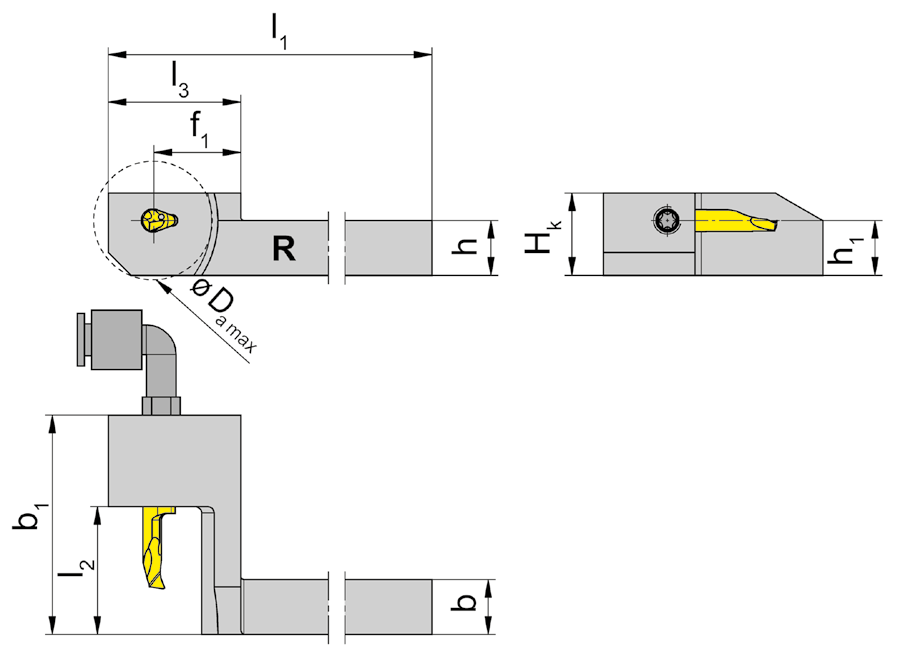

Coolant supply through cranked fitting R/LHC105.08.../.1010.11 without through coolant |
|||||||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LHC105... | 6.075T15P | T15PQ |
