Supermini 105 |
| AIH Toolholder | |||||||||
 Internal Grooving |
 External grooving |
 GRAF |
 Internal Boring |
||||||
 R = right hand version L = left hand version |
 |

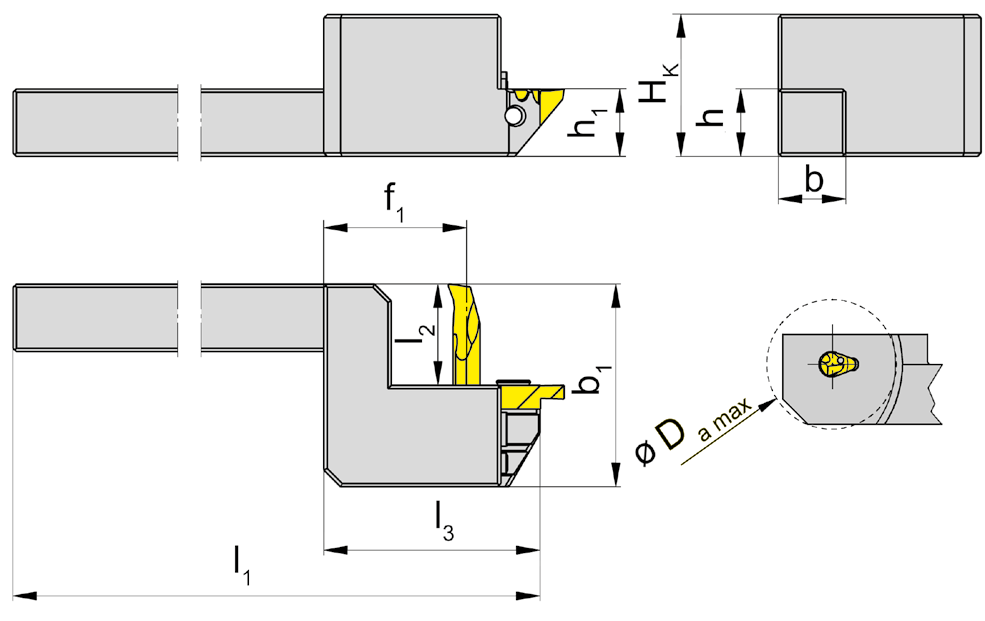

| Part number | h | b | f1 | l1 | l3 | h1 | HK | b1 | l2 | Da max | HWS |
| AIH.974.R.1212.K04 | 12 | 12 | 23 | 130 | 50 | 12 | 19 | 33 | 16.5 | 20 | 105123 • 105124 • 105125 • 274040R |
| AIH.974.R.1616.K04 | 16 | 16 | 26 | 130 | 50 | 16 | 23 | 33 | 16.5 | 26 | 105123 • 105124 • 105125 • 274040R |
| AIH.974.R.2020.K04 | 20 | 20 | 29 | 130 | 55 | 20 | 27 | 33 | 16.5 | 32 | 105123 • 105124 • 105125 • 274040R |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| AIH... | 6.075T15P | T15PQ |
