Supermini 105 |
| VDI Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 L = left hand version R = right hand version |
 |

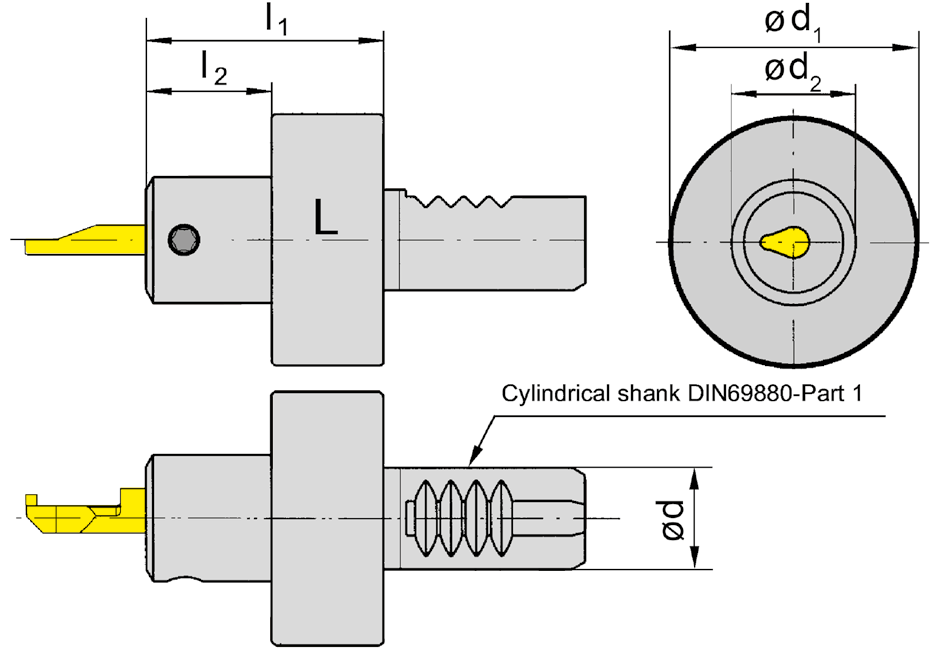

| Part number | d | l1 | l2 | d2 | d1 | HWS |
| VDI16.R105.20.01 | 16 | 38 | 20 | 20 | 40 | 105123 • 105124 • 105125 |
| VDI20.R105.20.01 | 20 | 38 | 20 | 20 | 50 | 105123 • 105124 • 105125 |
| VDI25.R105.20.01 | 25 | 38 | 20 | 20 | 58 | 105123 • 105124 • 105125 |
| VDI30.R105.20.01 | 30 | 38 | 20 | 20 | 68 | 105123 • 105124 • 105125 |
| VDI40.R105.20.01 | 40 | 38 | 20 | 20 | 83 | 105123 • 105124 • 105125 |
| VDI16.L105.20.01 | 16 | 38 | 20 | 20 | 40 | 105123 • 105124 • 105125 |
| VDI20.L105.20.01 | 20 | 38 | 20 | 20 | 50 | 105123 • 105124 • 105125 |
| VDI25.L105.20.01 | 25 | 38 | 20 | 20 | 58 | 105123 • 105124 • 105125 |
| VDI30.L105.20.01 | 30 | 38 | 20 | 20 | 68 | 105123 • 105124 • 105125 |
| VDI40.L105.20.01 | 40 | 38 | 20 | 20 | 83 | 105123 • 105124 • 105125 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| VDI16... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
