Supermini 105 |
| WFB.105 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 |
 |

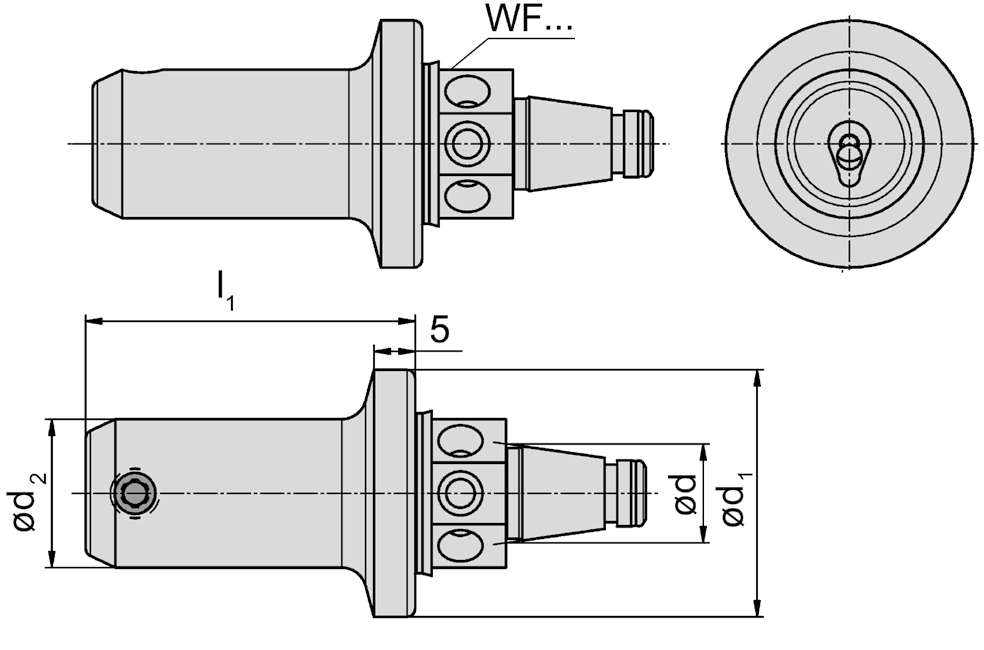

| Part number | d1 | l1 | d | d2 | HWS | HMS |
| WFB.2HO.105 | 30 | 40 | 12 | 18 | 105123 • 105124 • 105125 | WFB |
| WFB.2HO.105.055 | 30 | 55 | 12 | 18 | 105123 • 105124 • 105125 | WFB |
| WFB.3HO.105 | 50 | 40 | 20 | 18 | 105123 • 105124 • 105125 | WFB |
| WFB.3HO.105.055 | 50 | 55 | 20 | 18 | 105123 • 105124 • 105125 | WFB |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| WFB... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
