Supermini 105 |
| BKT Adjustable holder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||
 |
 |

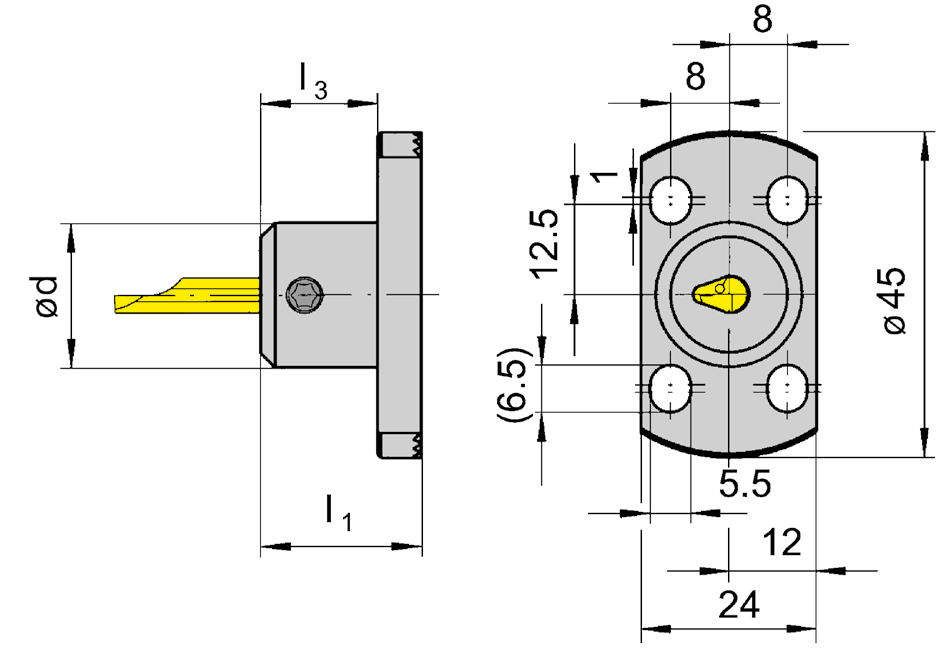

| Part number | d | l1 | l3 | HWS | HMS |
| BKT105.2445.01 | 20 | 22 | 16 | 105123 • 105124 • 105125 | Serration 90° / T3 |
| BKT105.2445.02 | 20 | 32 | 26 | 105225 | Serration 90° / T3 |
| Spare Parts | Adjustable holder | Clamping Screw | TORX PLUS® Wrench |
| BKT105... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
