Supermini 105 |
| BKT Adjustable holder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |

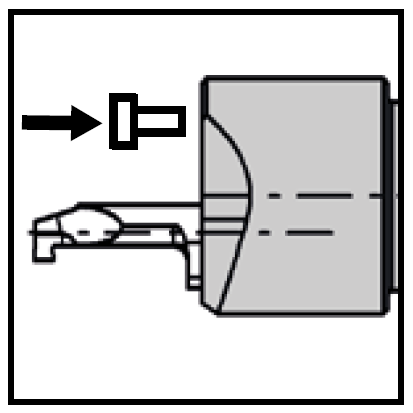

 Face Clamping |
 Internal Coolant |
|||||
 |
 |

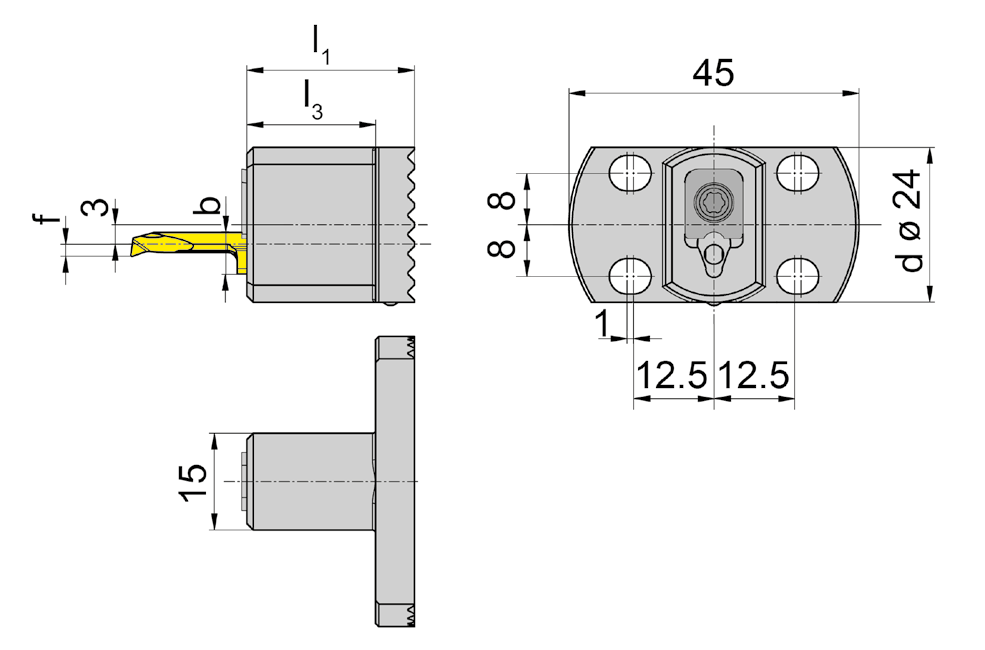

| Part number | l1 | d | l3 | b | HWS | HMS |
| BKT105.2445.S.03 | 26 | 24 | 20 | 5.9 | 105123 | Serration 90° / T3 |
| BKT105.2445.S.04 | 26 | 24 | 20 | 6.4 | 105124 | Serration 90° / T3 |
| BKT105.2445.S.05 | 26 | 24 | 20 | 7 | 105125 | Serration 90° / T3 |
f see inserts type 105 |
||||||
| Spare Parts | Adjustable holder | Clamping Screw | TORX PLUS® Wrench |
| BKT105.2445.S.03 | 010.0105.03 | T15PL | |
| BKT105.2445.S.04 | 010.0105.04 | T15PL | |
| BKT105.2445.S.05 | 010.0105.05 | T15PL |
We reserve the right to make technical changes.
