Supermini 105 |
| N Adjustable holder | |||||||||
 Internal Grooving |
 GRAF |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
|||||

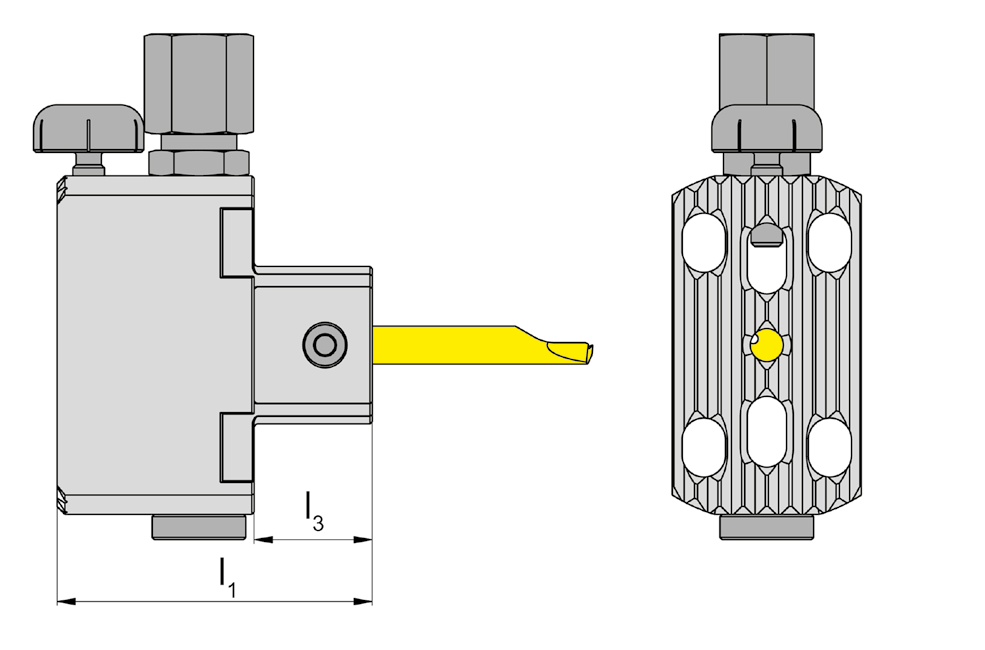

 Picture = right hand cutting version |
 |
| Part number | l1 | l3 | HWS | |||
| N.09.IK | 40 | 15 | 105123 • 105124 • 105125 | |||
Coolant tube is not included - separate order required! |
||||||
| Spare Parts | Adjustable holder | Clamping Screw | Coolant supply |
| N.09.IK | 6.075T15P | 004.00.19 |
We reserve the right to make technical changes.
