Supermini 105 |
| N Adjustable holder | |||||||||
 Internal Grooving |
 GRAF |
 Internal Boring |
 Internal Coolant |
||||||
 |
 |

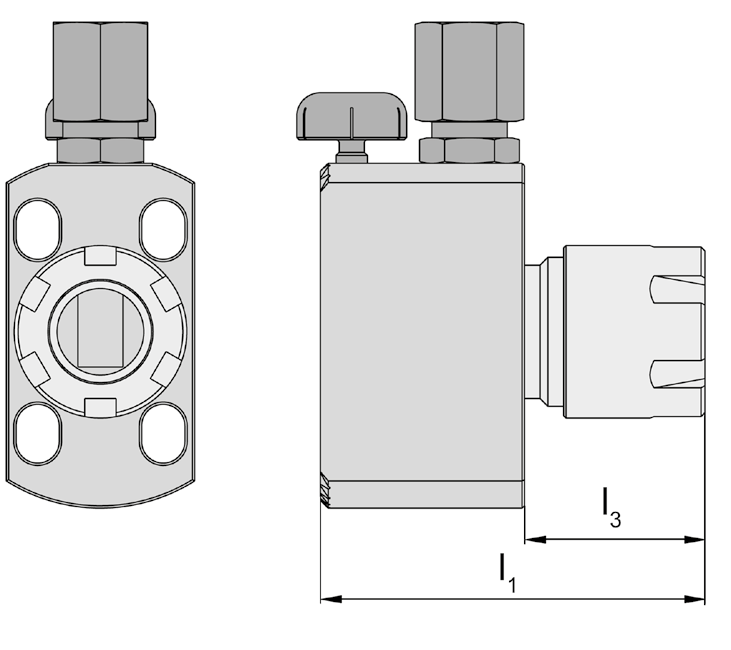

| Part number | l1 | l3 | Clamping nut | |||
| N.07.IK | 54 | 18 | ER16 | |||
| N.41.IK | 64 | 26 | ER20 | |||
Coolant tube is not included - separate order required! |
||||||
| Spare Parts | Adjustable holder | Coolant supply | |
| N... | 004.00.19 |
We reserve the right to make technical changes.
