Supermini 105 |
 R/L105.1809/1813... |
 R105.9013...2/25 |
 R105.2108...0.2/3.3 |
 R/L105.3313/3333... |
 R/L105.4713/4733... |
 R/L105.0050...0.2/2.2 |
| Insert Ø ≥ 2 mm | |||||||||
 Internal Boring |
 Internal Boring and Grooving Chamfer |
 Internal Boring |
 Internal Coolant |
||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||||

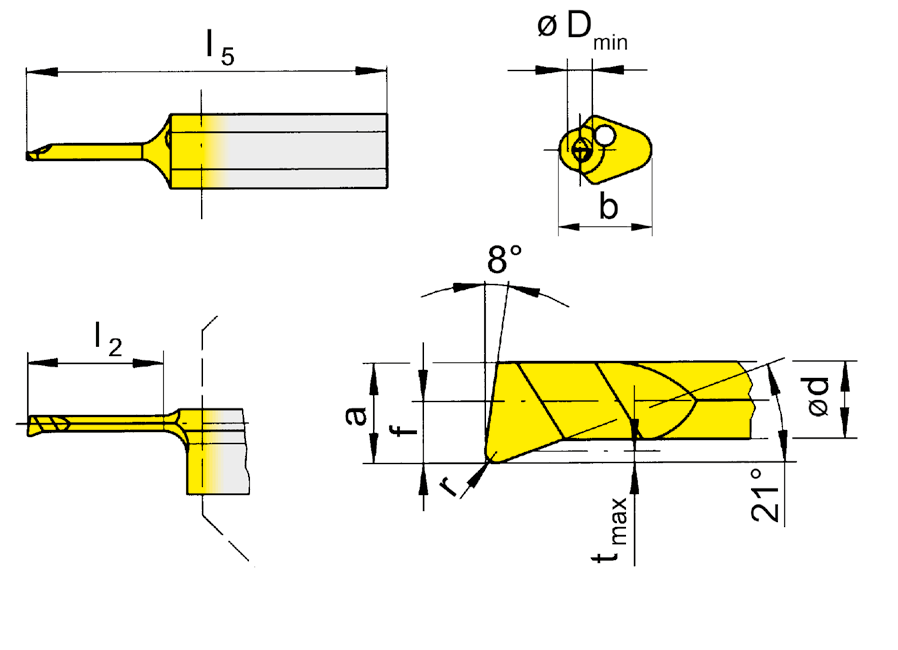

| Part number | r | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | IG35 | TH35 | TI25 | TN35 |
| R105.1809.005.0.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ⃤ | ⃤ | |
| R105.1809.005.1.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ⃤ | ||
| R105.1809.005.2.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ⃤ | ⃤ | |
| R105.1809.01.0.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ⃤ | ▲ | ▲ | ▲ | ||
| R105.1809.01.1.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ||
| R105.1809.01.2.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ⃤ | ▲ | ▲ | ▲ | ||
| R105.1809.0.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ▲ | |
| R105.1809.1.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ▲ | |
| R105.1809.2.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ▲ | |
| R105.1813.005.0.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 6 | 25 | 0.15 | 2.5 | 105123 | ▲ | ▲ | ▲ | |||
| R105.1813.005.1.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 9 | 25 | 0.15 | 2.5 | 105123 | ▲ | ▲ | ▲ | |||
| R105.1813.005.2.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 12 | 30 | 0.15 | 2.5 | 105123 | ⃤ | ▲ | ▲ | |||
| R105.1813.005.3.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 16 | 35 | 0.15 | 2.5 | 105123 | ▲ | ▲ | ▲ | |||
| L105.1809.005.0.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ⃤ | ▲ | ||||
| L105.1809.005.1.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ⃤ | ▲ | ||||
| L105.1809.005.2.2 | 0.05 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ⃤ | ▲ | ||||
| L105.1809.01.0.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ⃤ | ▲ | ▲ | |||
| L105.1809.01.1.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ⃤ | ▲ | ⃤ | |||
| L105.1809.01.2.2 | 0.1 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ⃤ | ▲ | ▲ | |||
| L105.1809.0.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 6 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ||
| L105.1809.1.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 9 | 25 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ||
| L105.1809.2.2 | 0.15 | 1 | 1.9 | 1.6 | 5.9 | 12 | 30 | 0.15 | 2 | 105123 | ▲ | ▲ | ▲ | ▲ | ||
| L105.1813.005.0.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 6 | 25 | 0.15 | 2.5 | 105123 | ⃤ | ▲ | ||||
| L105.1813.005.1.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 9 | 25 | 0.15 | 2.5 | 105123 | ⃤ | ▲ | ||||
| L105.1813.005.2.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 12 | 30 | 0.15 | 2.5 | 105123 | ⃤ | ▲ | ||||
| L105.1813.005.3.25 | 0.05 | 1.3 | 2.3 | 1.95 | 5.9 | 16 | 35 | 0.15 | 2.5 | 105123 | ⃤ | ▲ | ||||
| P | ||||||||||||||||
| M | ||||||||||||||||
| K | ||||||||||||||||
| N | ||||||||||||||||
| S | ||||||||||||||||
| H | ||||||||||||||||
We reserve the right to make technical changes.
