Supermini 105 |
 R/L105.1809/1813... |
 R105.9013...2/25 |
 R105.2108...0.2/3.3 |
 R/L105.3313/3333... |
 R/L105.4713/4733... |
 R/L105.0050...0.2/2.2 |
| Insert Ø ≥ 2 mm | |||||||||
 Internal Boring |
 Internal Boring and Grooving Chamfer |
 Boring and Profiling |
 Internal Coolant |
||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||||

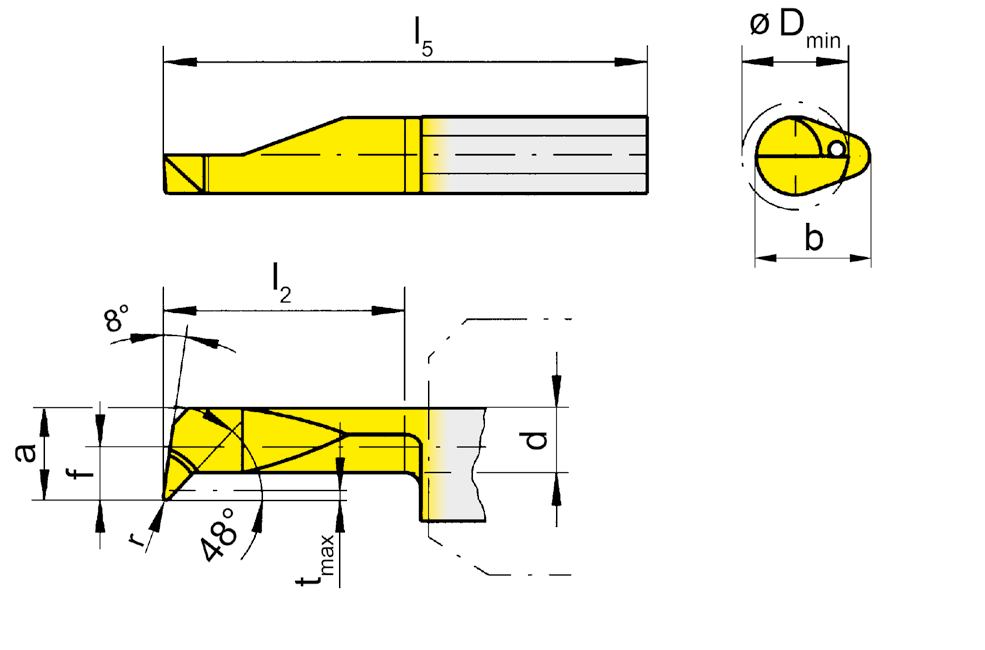

| Part number | r | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | ES15 | IG35 | TH35 | TI25 | TN35 |
| R105.4715.005.1.2 | 0.05 | 1.5 | 1.9 | 1.45 | 5.9 | 9 | 25 | 0.3 | 2 | 105123 | ▲ | ▲ | ▲ | ||||
| R105.4715.005.2.2 | 0.05 | 1.5 | 1.9 | 1.45 | 5.9 | 12 | 30 | 0.3 | 2 | 105123 | ▲ | ⃤ | ▲ | ||||
| R105.4713.005.1.3 | 0.05 | 1.3 | 2.6 | 2 | 5.9 | 10 | 25 | 0.4 | 3 | 105123 | ▲ | ▲ | ▲ | ||||
| R105.4713.005.2.3 | 0.05 | 1.3 | 2.6 | 2 | 5.9 | 15 | 30 | 0.4 | 3 | 105123 | ▲ | ▲ | ▲ | ||||
| R105.4719.1.4 | 0.15 | 1.9 | 3.7 | 2.9 | 6.4 | 10 | 25 | 0.6 | 4 | 105124 | ▲ | ▲ | ▲ | ||||
| R105.4719.3.4 | 0.15 | 1.9 | 3.7 | 2.9 | 6.4 | 20 | 35 | 0.6 | 4 | 105124 | ▲ | ▲ | ▲ | ▲ | ▲ | ||
| R105.4723.2.5 | 0.15 | 2.3 | 4.7 | 3.7 | 7 | 15 | 30 | 0.8 | 5 | 105125 | ▲ | ▲ | ▲ | ⃤ | |||
| R105.4723.4.5 | 0.15 | 2.3 | 4.7 | 3.7 | 7 | 25 | 40 | 0.8 | 5 | 105125 | ▲ | ▲ | ▲ | ▲ | ▲ | ||
| R105.4733.3.6 | 0.15 | 3.3 | 5.7 | 3.7 | 7 | 20 | 35 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | ||||
| R105.4733.5.6 | 0.15 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ▲ | ▲ | ▲ | ⃤ | ▲ | ||
| L105.4719.1.4 | 0.15 | 1.9 | 3.7 | 2.9 | 6.4 | 10 | 25 | 0.6 | 4 | 105124 | ▲ | ▲ | |||||
| L105.4719.3.4 | 0.15 | 1.9 | 3.7 | 2.9 | 6.4 | 20 | 35 | 0.6 | 4 | 105124 | ▲ | ▲ | ▲ | ▲ | |||
| L105.4723.2.5 | 0.15 | 2.3 | 4.7 | 3.7 | 7 | 15 | 30 | 0.8 | 5 | 105125 | ⃤ | ▲ | |||||
| L105.4723.4.5 | 0.15 | 2.3 | 4.7 | 3.7 | 7 | 25 | 40 | 0.8 | 5 | 105125 | ▲ | ▲ | ▲ | ▲ | |||
| L105.4733.3.6 | 0.15 | 3.3 | 5.7 | 3.7 | 7 | 20 | 35 | 1.8 | 6 | 105125 | ⃤ | ▲ | |||||
| L105.4733.5.6 | 0.15 | 3.3 | 5.7 | 3.7 | 7 | 30 | 45 | 1.8 | 6 | 105125 | ▲ | ▲ | ⃤ | ▲ | |||
| P | |||||||||||||||||
| M | |||||||||||||||||
| K | |||||||||||||||||
| N | |||||||||||||||||
| S | |||||||||||||||||
| H | |||||||||||||||||
We reserve the right to make technical changes.
