Horn Supermini 105 Ø ≥ 3 mm R/L105.9013/9019...

Insert Ø ≥ 3 mm
Internal Boring		Internal Boring		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

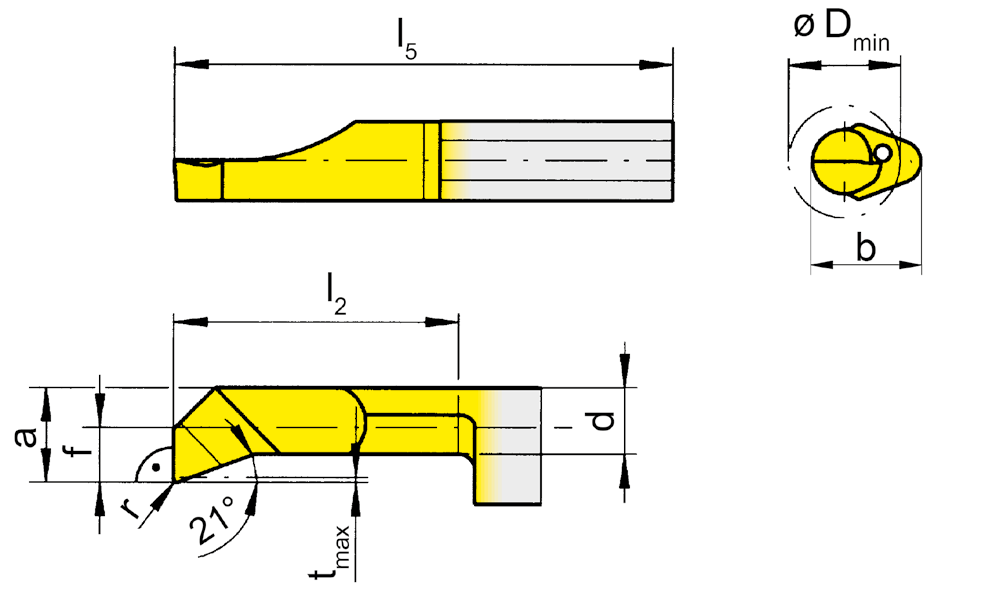

Part number	r	f	a	d	b	l₂	l₅	t_max	D_min	HIS	aaa	EG35	IG35	TH35	TN35
R105.9013.01.1.3	0.1	1.3	2.6	2.3	5.9	10	25	0.15	3	105123		⃤	▲	▲
R105.9013.01.2.3	0.1	1.3	2.6	2.3	5.9	15	30	0.15	3	105123		⃤	▲	▲
R105.9013.01.3.3	0.1	1.3	2.6	2.3	5.9	20	35	0.15	3	105123		▲	▲	⃤
R105.9013.1.3	0.2	1.3	2.6	2.3	5.9	10	25	0.15	3	105123		▲	▲		▲
R105.9013.2.3	0.2	1.3	2.6	2.3	5.9	15	30	0.15	3	105123		▲	▲		▲
R105.9019.01.1.4	0.1	1.9	3.7	2.9	6.4	10	25	0.3	4	105124		⃤	▲	▲
R105.9019.01.2.4	0.1	1.9	3.7	2.9	6.4	15	30	0.3	4	105124		⃤	▲	▲
R105.9019.01.3.4	0.1	1.9	3.7	2.9	6.4	20	35	0.3	4	105124		▲	▲	▲
R105.9019.1.4	0.2	1.9	3.7	2.9	6.4	10	25	0.3	4	105124		▲	▲		▲
R105.9019.2.4	0.2	1.9	3.7	2.9	6.4	15	30	0.3	4	105124		▲	▲		▲
L105.9013.01.1.3	0.1	1.3	2.6	2.3	5.9	10	25	0.15	3	105123		⃤		▲
L105.9013.01.2.3	0.1	1.3	2.6	2.3	5.9	15	30	0.15	3	105123		⃤		⃤
L105.9013.01.3.3	0.1	1.3	2.6	2.3	5.9	20	35	0.15	3	105123		⃤		⃤
L105.9013.1.3	0.2	1.3	2.6	2.3	5.9	10	25	0.15	3	105123		▲			▲
L105.9013.2.3	0.2	1.3	2.6	2.3	5.9	15	30	0.15	3	105123		▲			▲
L105.9019.01.1.4	0.1	1.9	3.7	2.9	6.4	10	25	0.3	4	105124		⃤		⃤
L105.9019.01.2.4	0.1	1.9	3.7	2.9	6.4	15	30	0.3	4	105124		⃤		⃤
L105.9019.01.3.4	0.1	1.9	3.7	2.9	6.4	20	35	0.3	4	105124		⃤		⃤
L105.9019.1.4	0.2	1.9	3.7	2.9	6.4	10	25	0.3	4	105124		▲			▲
L105.9019.2.4	0.2	1.9	3.7	2.9	6.4	15	30	0.3	4	105124		▲			▲
											P
											M
											K
											N
											S
											H

We reserve the right to make technical changes.
