Horn Supermini 105 Ø ≥ 3 mm R/L105.0407...

Insert Ø ≥ 3 mm
Internal Grooving		Internal Coolant		Internal Thread		Metric ISO Thread

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

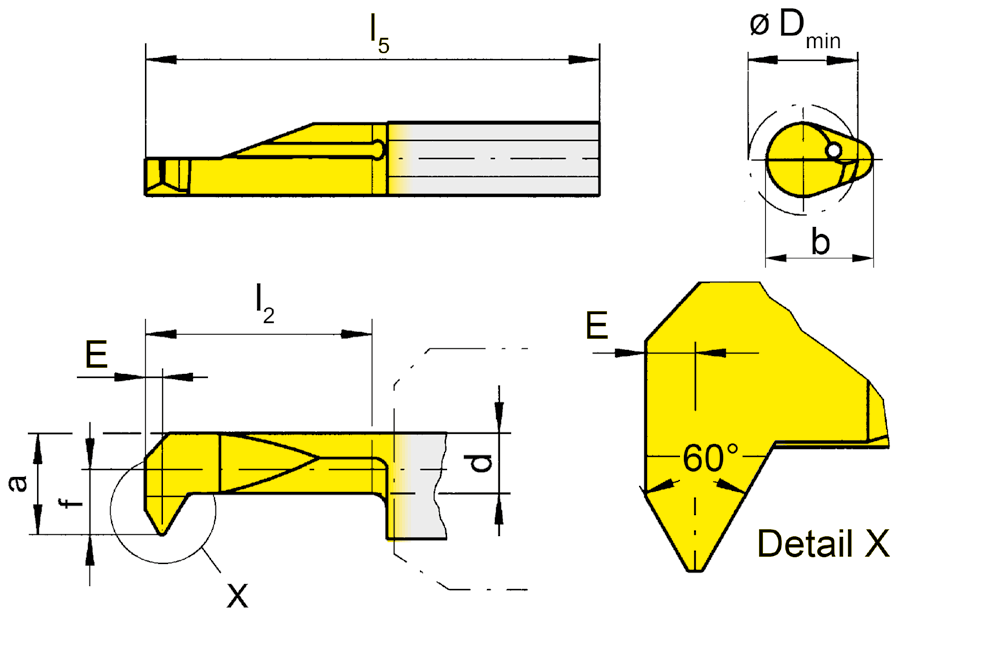

Part number	P	P_max	E	f	a	d	b	l₂	l₅	D_min	HIS	aaa	EG35	TH35	TN35
R105.0407.2.3	0.5	0.75	0.45	1.4	2.7	2	5.9	15	30	3	105123		▲		▲
R105.0407.1.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	10	25	4	105124		▲		▲
R105.0407.2.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	15	30	4	105124		▲		▲
R105.0407.3.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	20	35	4	105124		▲		▲
R105.0407.2.5	0.5	0.75	0.45	2.3	4.7	3.5	7	15	30	5	105125		▲	▲	▲
R105.0407.3.5	0.5	0.75	0.45	2.3	4.7	3.5	7	20	35	5	105125		⃤		▲
R105.0407.4.5	0.5	0.75	0.45	2.3	4.7	3.5	7	25	40	5	105125		▲		▲
R105.0407.3.6	0.5	0.75	0.45	3.3	5.7	4.7	7	20	35	6	105125		▲		▲
L105.0407.2.3	0.5	0.75	0.45	1.4	2.7	2	5.9	15	30	3	105123		⃤		⃤
L105.0407.1.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	10	25	4	105124		⃤		▲
L105.0407.2.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	15	30	4	105124		⃤		▲
L105.0407.3.4	0.5	0.75	0.45	1.9	3.7	2.7	6.4	20	35	4	105124		⃤		⃤
L105.0407.2.5	0.5	0.75	0.45	2.3	4.7	3.5	7	15	30	5	105125		▲	▲	▲
L105.0407.3.5	0.5	0.75	0.45	2.3	4.7	3.5	7	20	35	5	105125		⃤		⃤
L105.0407.4.5	0.5	0.75	0.45	2.3	4.7	3.5	7	25	40	5	105125		⃤		⃤
L105.0407.3.6	0.5	0.75	0.45	3.3	5.7	4.7	7	20	35	6	105125		⃤		⃤
												P
												M
												K
												N
												S
												H

We reserve the right to make technical changes.
