Supermini 105 |
| Insert Ø ≥ 3 mm | |||||||||

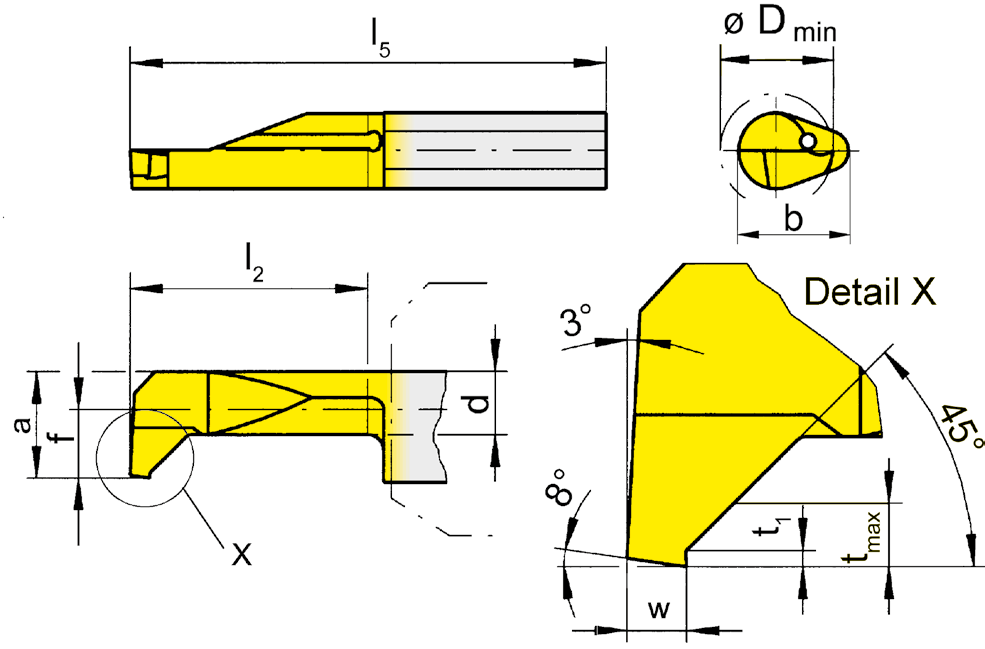

 Internal Pre-grooving and Chamfering |
 Internal Coolant |
||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||
| Part number | w | f | a | d | b | l2 | l5 | tmax | t1 | Dmin | HIS | aaa | EG35 | TI25 | TN35 |
| R105.0810.1.3 | 0.7 | 1.4 | 2.7 | 2 | 5.9 | 10 | 25 | 0.5 | 0.2 | 3 | 105123 | ▲ | ▲ | ||
| R105.0810.2.3 | 0.7 | 1.4 | 2.7 | 2 | 5.9 | 15 | 30 | 0.5 | 0.2 | 3 | 105123 | ⃤ | ▲ | ||
| R105.0810.1.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 10 | 25 | 0.7 | 0.2 | 4 | 105124 | ▲ | ▲ | ||
| R105.0810.2.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.7 | 0.2 | 4 | 105124 | ▲ | ▲ | ||
| R105.0810.3.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 20 | 35 | 0.7 | 0.2 | 4 | 105124 | ⃤ | ▲ | ||
| R105.0810.3.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 20 | 35 | 0.7 | 0.2 | 5 | 105125 | ▲ | ▲ | ▲ | |
| R105.0810.4.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 0.7 | 0.2 | 5 | 105125 | ▲ | ▲ | ▲ | |
| R105.0810.5.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 0.7 | 0.2 | 5 | 105125 | ▲ | ▲ | ▲ | |
| R105.0810.5.6 | 1 | 3.1 | 5.5 | 4.2 | 7 | 30 | 45 | 1 | 0.2 | 6 | 105125 | ▲ | ▲ | ||
| R105.0810.7.6 | 1 | 3.1 | 5.5 | 4.2 | 7 | 40 | 55 | 1 | 0.2 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0810.1.3 | 0.7 | 1.4 | 2.7 | 2 | 5.9 | 10 | 25 | 0.5 | 0.2 | 3 | 105123 | ⃤ | ▲ | ||
| L105.0810.2.3 | 0.7 | 1.4 | 2.7 | 2 | 5.9 | 15 | 30 | 0.5 | 0.2 | 3 | 105123 | ⃤ | ▲ | ||
| L105.0810.1.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 10 | 25 | 0.7 | 0.2 | 4 | 105124 | ⃤ | ⃤ | ||
| L105.0810.2.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.7 | 0.2 | 4 | 105124 | ⃤ | ▲ | ||
| L105.0810.3.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 20 | 35 | 0.7 | 0.2 | 4 | 105124 | ⃤ | ▲ | ||
| L105.0810.3.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 20 | 35 | 0.7 | 0.2 | 5 | 105125 | ⃤ | ▲ | ▲ | |
| L105.0810.4.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 0.7 | 0.2 | 5 | 105125 | ⃤ | ▲ | ▲ | |
| L105.0810.5.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 0.7 | 0.2 | 5 | 105125 | ⃤ | ▲ | ⃤ | |
| L105.0810.5.6 | 1 | 3.1 | 5.5 | 4.2 | 7 | 30 | 45 | 1 | 0.2 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0810.7.6 | 1 | 3.1 | 5.5 | 4.2 | 7 | 40 | 55 | 1 | 0.2 | 6 | 105125 | ⃤ | ⃤ | ||
| P | |||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
We reserve the right to make technical changes.
