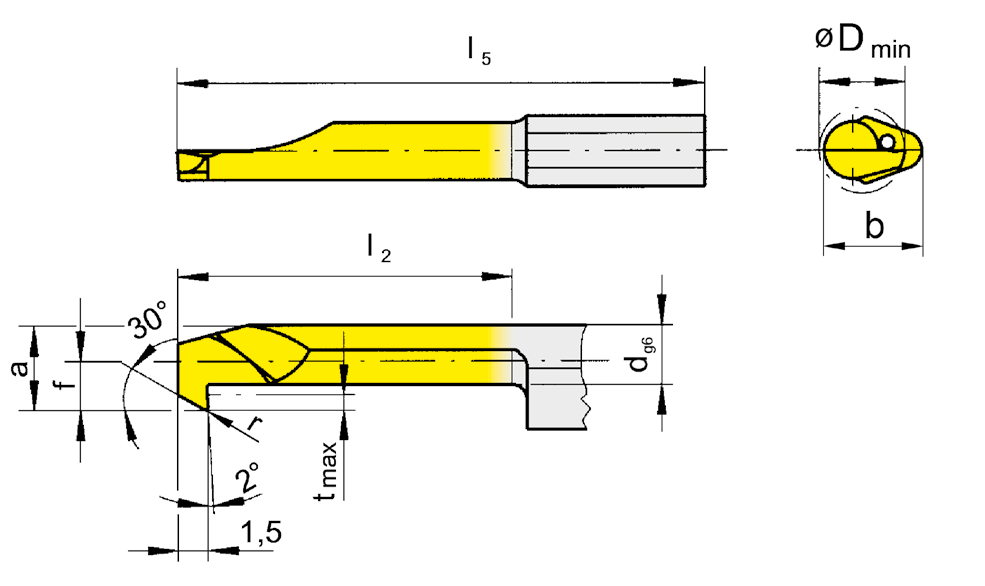

Horn Supermini 105 Ø ≥ 3 mm R/L105.3013/3040...

Insert Ø ≥ 3 mm
Internal Back Turning		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades
Part number	r	f	a	d	b	l₂	l₅	t_max	D_min	HIS	aaa	EG35	TI25
R105.3013.2.3	0.1	1.3	2.6	1.9	5.9	15	30	0.5	3	105123		▲	▲
R105.3013.3.3	0.1	1.3	2.6	1.9	5.9	20	35	0.5	3	105123		▲	▲
R105.3019.2.4	0.15	1.9	3.7	2.7	6.4	15	30	0.8	4	105124		▲	▲
R105.3019.4.4	0.15	1.9	3.7	2.7	6.4	25	40	0.8	4	105124		▲	▲
R105.3023.3.5	0.2	2.3	4.7	3.5	7	20	35	1	5	105125		▲	▲
R105.3023.5.5	0.2	2.3	4.7	3.5	7	30	45	1	5	105125		▲	▲
R105.3033.3.6	0.2	3.3	5.7	3.7	7	20	35	1.8	6	105125		▲	▲
R105.3033.5.6	0.2	3.3	5.7	3.7	7	30	45	1.8	6	105125		▲	▲
R105.3040.3.7	0.2	4	6.4	3.7	7	20	35	2.5	6.8	105125		▲	▲
R105.3040.5.7	0.2	4	6.4	3.7	7	30	45	2.5	6.8	105125		▲	▲
L105.3013.2.3	0.1	1.3	2.6	1.9	5.9	15	30	0.5	3	105123		⃤	▲
L105.3013.3.3	0.1	1.3	2.6	1.9	5.9	20	35	0.5	3	105123		⃤	⃤
L105.3019.2.4	0.15	1.9	3.7	2.7	6.4	15	30	0.8	4	105124			⃤
L105.3019.4.4	0.15	1.9	3.7	2.7	6.4	25	40	0.8	4	105124		⃤	⃤
L105.3023.3.5	0.2	2.3	4.7	3.5	7	20	35	1	5	105125		▲	▲
L105.3023.5.5	0.2	2.3	4.7	3.5	7	30	45	1	5	105125		⃤	⃤
L105.3033.3.6	0.2	3.3	5.7	3.7	7	20	35	1.8	6	105125		⃤	▲
L105.3033.5.6	0.2	3.3	5.7	3.7	7	30	45	1.8	6	105125		⃤	⃤
L105.3040.3.7	0.2	4	6.4	3.7	7	20	35	2.5	6.8	105125		▲	▲
L105.3040.5.7	0.2	4	6.4	3.7	7	30	45	2.5	6.8	105125		⃤	⃤
											P
											M
											K
											N
											S
											H

We reserve the right to make technical changes.
