Supermini 105 |
| 105 Insert | |||||||||
 Boring Into Solid |
 Face Turning |
 External Side Turning |
 Internal Boring |
 Internal Coolant |
|||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||
| Part number | r | f | a | d | b | l2 | l5 | tmax | Ds | HIS | aaa | EG35 |
| R105.BO.30.20.045.1 | 0.2 | 1.5 | 2.7 | 2.4 | 7 | 4.5 | 31 | 0.1 | 3 | 105125 | ▲ | |
| R105.BO.30.20.075.1 | 0.2 | 1.5 | 2.7 | 2.4 | 7 | 7.5 | 31 | 0.1 | 3 | 105125 | ▲ | |
| R105.BO.40.20.060.1 | 0.2 | 2 | 3.7 | 3.4 | 7 | 6 | 31 | 0.1 | 4 | 105125 | ▲ | |
| R105.BO.40.20.100.1 | 0.2 | 2 | 3.7 | 3.4 | 7 | 10 | 31 | 0.1 | 4 | 105125 | ▲ | |
| R105.BO.50.20.075.1 | 0.2 | 2.5 | 4.7 | 4.4 | 7 | 7.5 | 31 | 0.1 | 5 | 105125 | ▲ | |
| R105.BO.50.20.125.1 | 0.2 | 2.5 | 4.7 | 4.4 | 7 | 12.5 | 36 | 0.1 | 5 | 105125 | ▲ | |
| R105.BO.60.20.090.1 | 0.2 | 3 | 5.4 | 5.1 | 7 | 9 | 31 | 0.1 | 6 | 105125 | ▲ | |
| R105.BO.60.20.150.1 | 0.2 | 3 | 5.4 | 5.1 | 7 | 15 | 36 | 0.1 | 6 | 105125 | ▲ | |
| R105.BO.70.20.105.1 | 0.2 | 3.5 | 5.9 | 5.6 | 7 | 10.5 | 36 | 0.1 | 7 | 105125 | ▲ | |
| R105.BO.70.20.175.1 | 0.2 | 3.5 | 5.9 | 5.6 | 7 | 17.5 | 40 | 0.1 | 7 | 105125 | ▲ | |
| L105.BO.30.20.045.1 | 0.2 | 1.5 | 2.7 | 2.4 | 7 | 4.5 | 31 | 0.1 | 3 | 105125 | ⃤ | |
| L105.BO.30.20.075.1 | 0.2 | 1.5 | 2.7 | 2.4 | 7 | 7.5 | 31 | 0.1 | 3 | 105125 | ⃤ | |
| L105.BO.40.20.060.1 | 0.2 | 2 | 3.7 | 3.4 | 7 | 6 | 31 | 0.1 | 4 | 105125 | ⃤ | |
| L105.BO.40.20.100.1 | 0.2 | 2 | 3.7 | 3.4 | 7 | 10 | 31 | 0.1 | 4 | 105125 | ⃤ | |
| L105.BO.50.20.075.1 | 0.2 | 2.5 | 4.7 | 4.4 | 7 | 7.5 | 31 | 0.1 | 5 | 105125 | ⃤ | |
| L105.BO.50.20.125.1 | 0.2 | 2.5 | 4.7 | 4.4 | 7 | 12.5 | 36 | 0.1 | 5 | 105125 | ⃤ | |
| L105.BO.60.20.090.1 | 0.2 | 3 | 5.4 | 5.1 | 7 | 9 | 31 | 0.1 | 6 | 105125 | ⃤ | |
| L105.BO.60.20.150.1 | 0.2 | 3 | 5.4 | 5.1 | 7 | 15 | 36 | 0.1 | 6 | 105125 | ⃤ | |
| L105.BO.70.20.105.1 | 0.2 | 3.5 | 5.9 | 5.6 | 7 | 10.5 | 36 | 0.1 | 7 | 105125 | ⃤ | |
| L105.BO.70.20.175.1 | 0.2 | 3.5 | 5.9 | 5.6 | 7 | 17.5 | 40 | 0.1 | 7 | 105125 | ⃤ | |

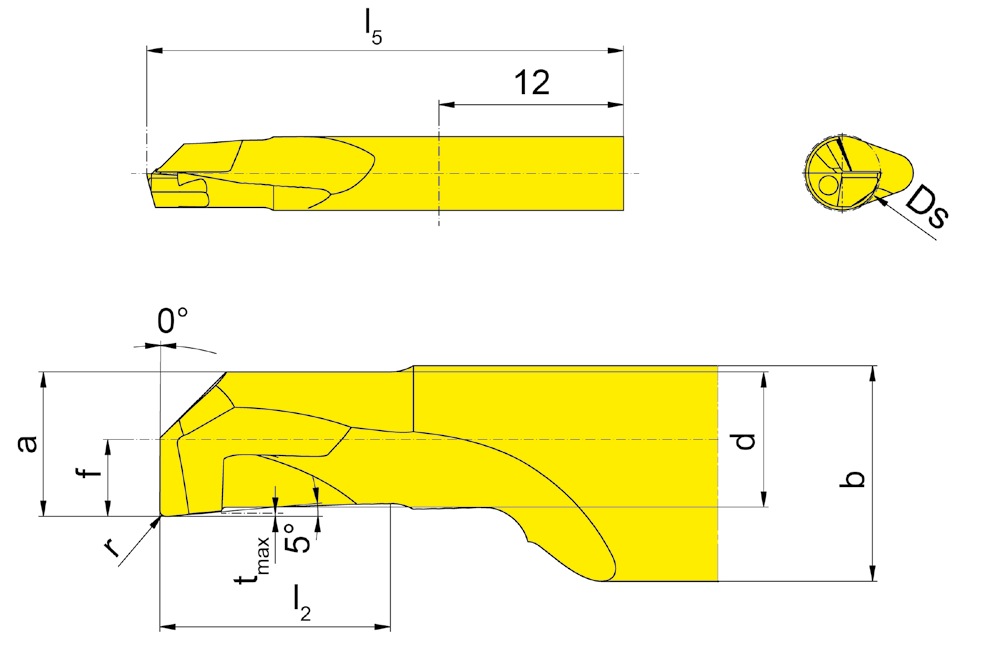

with through coolant supply from cutting diameter 5 mm with chip breaker |
P | |||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
