Supermini 105 |
 R/L105.1819...1.4/3.4 |
 R/L105.1019...1.4/4.4 |
R/L105.1819...H4/H5 |
R/L105.1819...HV4/HV5 |
R/L105.1819...1.HV4/5.HV5 |
||||
 R/L105.1819...4F/5F |
 R/L105.0050/0100...4 |
 R/L105.1620/3240... |
 R/L105.5520/5528... |
| Insert Ø ≥ 4 mm | |||||||||
 Internal Grooving |
 Internal Coolant |
||||||||
 |
|

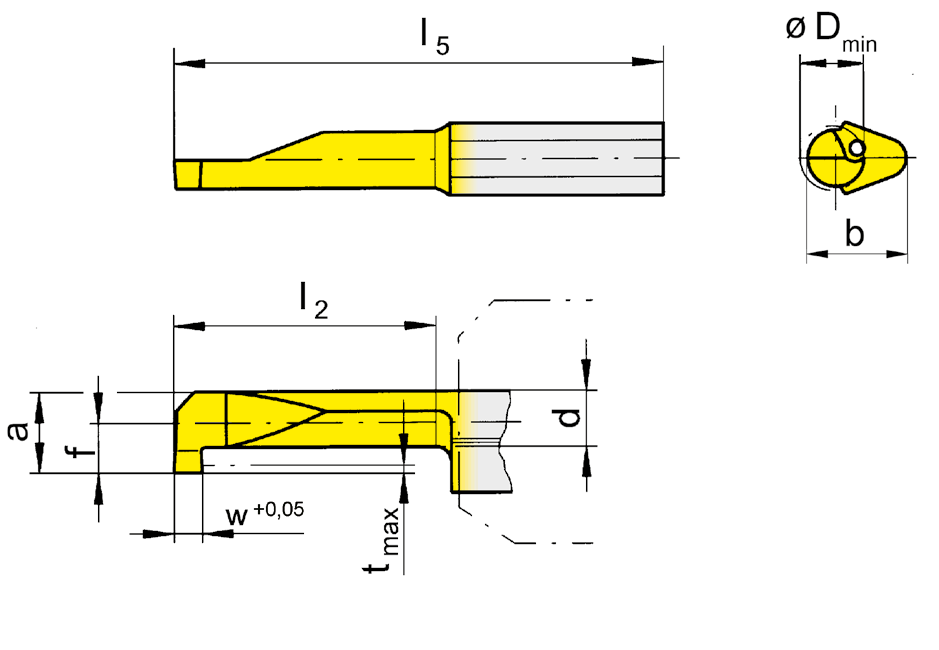

| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||
| Part number | w | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | ES15 | TN35 |
| R105.0050.1.4 | 0.5 | 1.9 | 3.7 | 2.9 | 6.4 | 10 | 25 | 0.6 | 4 | 105124 | ▲ | ▲ | ||
| R105.0050.2.4 | 0.5 | 1.9 | 3.7 | 2.9 | 6.4 | 15 | 30 | 0.6 | 4 | 105124 | ▲ | ▲ | ||
| R105.0050.3.4 | 0.5 | 1.9 | 3.7 | 2.9 | 6.4 | 20 | 35 | 0.6 | 4 | 105124 | ⃤ | ⃤ | ||
| R105.0100.1.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 10 | 25 | 0.8 | 4 | 105124 | ▲ | ▲ | ||
| R105.0100.2.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.8 | 4 | 105124 | ▲ | ▲ | ||
| R105.0100.3.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 20 | 35 | 0.8 | 4 | 105124 | ⃤ | ▲ | ||
| L105.0100.1.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 10 | 25 | 0.8 | 4 | 105124 | ⃤ | ▲ | ||
| L105.0100.2.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 15 | 30 | 0.8 | 4 | 105124 | ⃤ | ▲ | ||
| L105.0100.3.4 | 1 | 1.9 | 3.7 | 2.7 | 6.4 | 20 | 35 | 0.8 | 4 | 105124 | ⃤ | ▲ | ||
| P | ||||||||||||||
| M | ||||||||||||||
| K | ||||||||||||||
| N | ||||||||||||||
| S | ||||||||||||||
| H | ||||||||||||||
