Supermini 105 |
 R/L105.1823...1.5/5.5 |
 R105.9023...1.5/5.5 |
 R/L105.1023...1.5/6.5 |
 R/L105.9023/9033... |
 R/L105.0100/0200...1.5 |
||||
R/L105.0100/0200...5 |
 R/L105.FB10/FB15... |
R/L105.1823/4733...2 |
 R/L105.0505/0520... |
| Insert Ø ≥ 5 mm | |||||||||
 Internal Grooving |
 Internal Coolant |
||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||

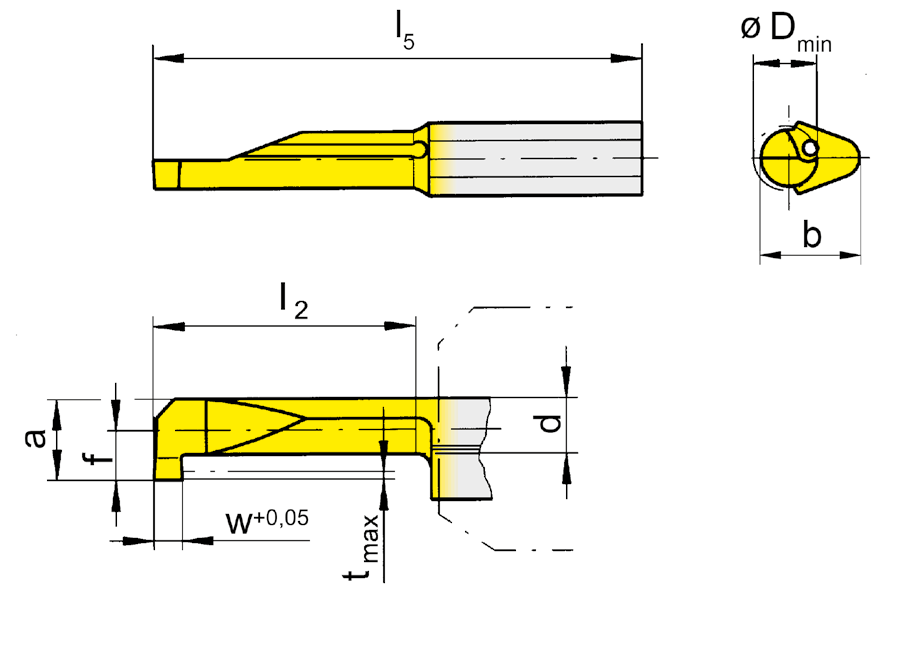

| Part number | w | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | TH35 | TN35 |
| R105.0100.4.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ▲ | ⃤ | ▲ | |
| R105.0100.5.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ▲ | ▲ | ▲ | |
| R105.0150.4.5 | 1.5 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ▲ | ▲ | ||
| R105.0150.5.5 | 1.5 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ⃤ | ▲ | ▲ | |
| R105.0200.4.5 | 2 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ▲ | ▲ | ▲ | |
| R105.0200.5.5 | 2 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ⃤ | ▲ | ▲ | |
| L105.0100.4.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0100.5.5 | 1 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0150.4.5 | 1.5 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0150.5.5 | 1.5 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0200.4.5 | 2 | 2.3 | 4.7 | 3.5 | 7 | 25 | 40 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| L105.0200.5.5 | 2 | 2.3 | 4.7 | 3.5 | 7 | 30 | 45 | 1 | 5 | 105125 | ⃤ | ⃤ | ⃤ | |
| P | ||||||||||||||
| M | ||||||||||||||
| K | ||||||||||||||
| N | ||||||||||||||
| S | ||||||||||||||
| H | ||||||||||||||
We reserve the right to make technical changes.
