Horn Supermini 105 Ø ≥ 6 mm R/L105.1033...1.6/6.6

R/L105.1833/1840...		R/L105.1033...6		105.1833...H.6/H.7		105.1833...HV6/HV7		105.1833.04...HV6/HV7		R/L105.2133/2140...
R/L105.0100/0200...		R/L105.0100/0200...		R/L105.0005/0010...		R/L105.5519/5528...		R/L105.NP18/NP27...		R/L105.0610/0620...

Insert Ø ≥ 6 mm
Internal Boring		Internal Boring		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

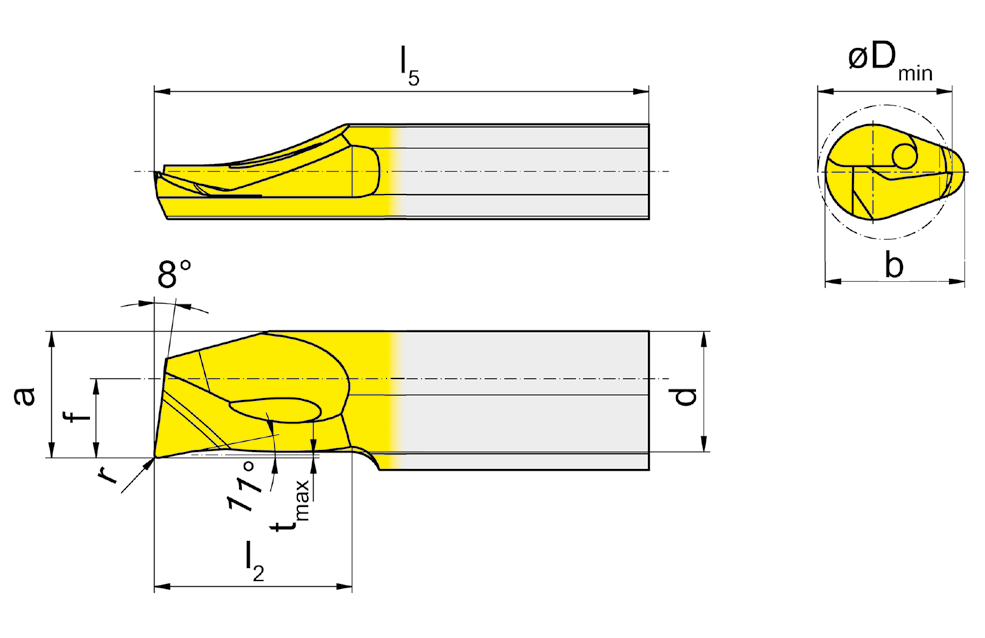

Part number	r	f	a	d	b	l₂	l₅	t_max	D_min	HIS	aaa	EG35	IG35	TH35
R105.1033.005.1.6	0.05	3.3	5.7	5.4	7	10	25	0.15	6	105125		▲	▲	▲
R105.1033.005.2.6	0.05	3.3	5.7	5.4	7	15	30	0.15	6	105125		⃤	▲	▲
R105.1033.005.3.6	0.05	3.3	5.7	5.4	7	20	35	0.15	6	105125		▲	▲	▲
R105.1033.005.4.6	0.05	3.3	5.7	5.4	7	25	40	0.15	6	105125		⃤	▲	▲
R105.1033.005.5.6	0.05	3.3	5.7	5.4	7	30	45	0.15	6	105125		⃤	▲	▲
R105.1033.005.6.6	0.05	3.3	5.7	5.4	7	35	50	0.15	6	105125		⃤	▲	▲
R105.1033.1.6	0.2	3.3	5.7	5.4	7	10	25	0.15	6	105125		▲	▲	▲
R105.1033.2.6	0.2	3.3	5.7	5.4	7	15	30	0.15	6	105125		▲	▲	▲
R105.1033.3.6	0.2	3.3	5.7	5.4	7	20	35	0.15	6	105125		▲	▲	▲
R105.1033.4.6	0.2	3.3	5.7	5.4	7	25	40	0.15	6	105125		▲	▲	▲
R105.1033.5.6	0.2	3.3	5.7	5.4	7	30	45	0.15	6	105125		▲	▲	▲
R105.1033.6.6	0.2	3.3	5.7	5.4	7	35	50	0.15	6	105125		▲	▲	▲
L105.1033.005.1.6	0.05	3.3	5.7	5.4	7	10	25	0.15	6	105125		⃤		▲
L105.1033.005.2.6	0.05	3.3	5.7	5.4	7	15	30	0.15	6	105125		⃤		▲
L105.1033.005.3.6	0.05	3.3	5.7	5.4	7	20	35	0.15	6	105125		⃤		▲
L105.1033.005.4.6	0.05	3.3	5.7	5.4	7	25	40	0.15	6	105125		⃤		⃤
L105.1033.005.5.6	0.05	3.3	5.7	5.4	7	30	45	0.15	6	105125		⃤		▲
L105.1033.005.6.6	0.05	3.3	5.7	5.4	7	35	50	0.15	6	105125		⃤		▲
L105.1033.1.6	0.2	3.3	5.7	5.4	7	10	25	0.15	6	105125				▲
L105.1033.2.6	0.2	3.3	5.7	5.4	7	15	30	0.15	6	105125		⃤		▲
L105.1033.3.6	0.2	3.3	5.7	5.4	7	20	35	0.15	6	105125		⃤		▲
L105.1033.4.6	0.2	3.3	5.7	5.4	7	25	40	0.15	6	105125		⃤		▲
L105.1033.5.6	0.2	3.3	5.7	5.4	7	30	45	0.15	6	105125		⃤		▲
L105.1033.6.6	0.2	3.3	5.7	5.4	7	35	50	0.15	6	105125		⃤		▲
reinforced version											P
											M
											K
											N
											S
											H

We reserve the right to make technical changes.
