Horn Supermini 105 Ø ≥ 6 mm R/L105.2133/2140...1.6/6.7

R/L105.1833/1840...		R/L105.1033...6		105.1833...H.6/H.7		105.1833...HV6/HV7		105.1833.04...HV6/HV7		R/L105.2133/2140...
R/L105.0100/0200...		R/L105.0100/0200...		R/L105.0005/0010...		R/L105.5519/5528...		R/L105.NP18/NP27...		R/L105.0610/0620...

Insert Ø ≥ 6 mm
Internal Boring		Internal Boring and Grooving Chamfer		Boring and Profiling		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

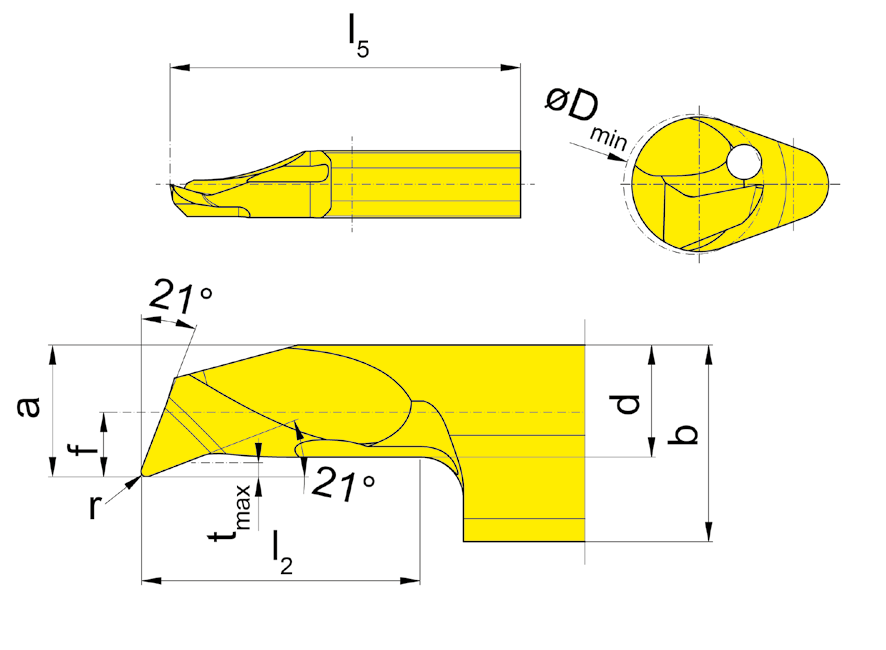

Part number	r	f	a	d	b	l₂	l₅	t_max	D_min	HIS	aaa	EG35	IG35
R105.2133.1.6	0.2	3.3	5.7	4.7	7	10	25	0.5	6	105125		▲	▲
R105.2133.2.6	0.2	3.3	5.7	4.7	7	15	30	0.5	6	105125		▲	▲
R105.2133.3.6	0.2	3.3	5.7	4.7	7	20	35	0.5	6	105125		▲	▲
R105.2133.4.6	0.2	3.3	5.7	4.7	7	25	40	0.5	6	105125		⃤	▲
R105.2133.5.6	0.2	3.3	5.7	4.7	7	30	45	0.5	6	105125		⃤	▲
R105.2133.6.6	0.2	3.3	5.7	4.7	7	35	50	0.5	6	105125		⃤	▲
R105.2140.1.7	0.2	4	6.4	5.2	7	10	25	0.5	7	105125		▲	▲
R105.2140.2.7	0.2	4	6.4	5.2	7	15	30	0.5	7	105125		▲	▲
R105.2140.3.7	0.2	4	6.4	5.2	7	20	35	0.5	7	105125		▲	▲
R105.2140.4.7	0.2	4	6.4	5.2	7	25	40	0.5	7	105125		⃤	▲
R105.2140.5.7	0.2	4	6.4	5.2	7	30	45	0.5	7	105125		⃤	▲
R105.2140.6.7	0.2	4	6.4	5.2	7	35	50	0.5	7	105125		⃤	▲
L105.2133.1.6	0.2	3.3	5.7	4.7	7	10	25	0.5	6	105125		▲
L105.2133.2.6	0.2	3.3	5.7	4.7	7	15	30	0.5	6	105125		▲
L105.2133.3.6	0.2	3.3	5.7	4.7	7	20	35	0.5	6	105125		▲
L105.2133.4.6	0.2	3.3	5.7	4.7	7	25	40	0.5	6	105125		⃤
L105.2133.5.6	0.2	3.3	5.7	4.7	7	30	45	0.5	6	105125		⃤
L105.2133.6.6	0.2	3.3	5.7	4.7	7	35	50	0.5	6	105125		⃤
L105.2140.1.7	0.2	4	6.4	5.2	7	10	25	0.5	7	105125		▲
L105.2140.2.7	0.2	4	6.4	5.2	7	15	30	0.5	7	105125		▲
L105.2140.3.7	0.2	4	6.4	5.2	7	20	35	0.5	7	105125		⃤
L105.2140.4.7	0.2	4	6.4	5.2	7	25	40	0.5	7	105125		⃤
L105.2140.5.7	0.2	4	6.4	5.2	7	30	45	0.5	7	105125		⃤
L105.2140.6.7	0.2	4	6.4	5.2	7	35	50	0.5	7	105125		⃤
											P
											M
											K
											N
											S
											H

We reserve the right to make technical changes.
