Supermini 105 |
| Insert Ø ≥ 6 mm | |||||||||
 Internal Grooving Full Radius |
 Boring and Profiling |
 Internal Coolant |
|||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||

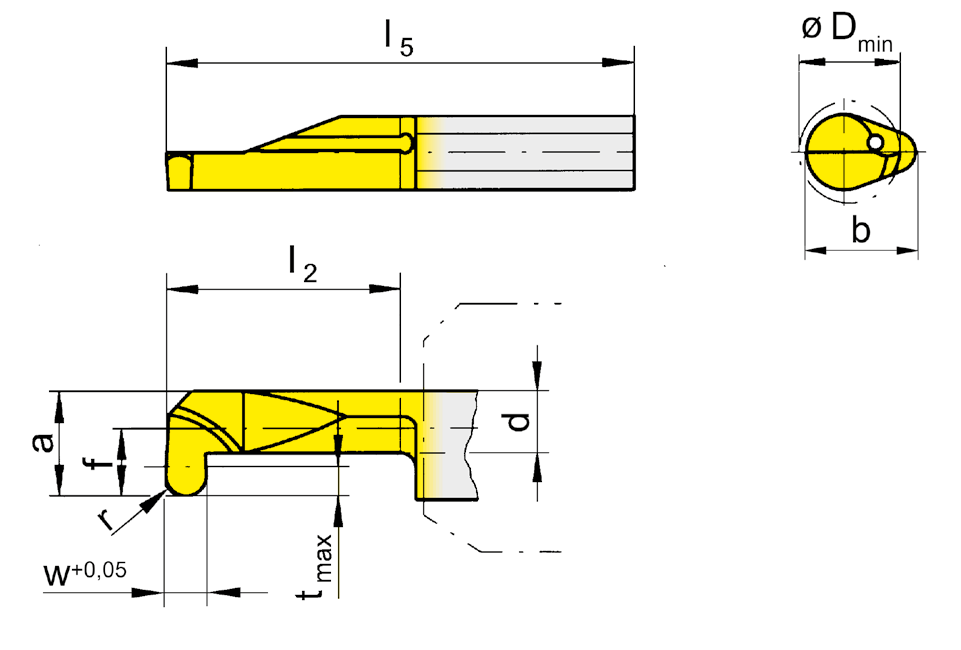

| Part number | w | r | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | TH35 | TN35 |
| R105.0005.2.6 | 1 | 0.5 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| R105.0005.4.6 | 1 | 0.5 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| R105.0007.2.6 | 1.5 | 0.75 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| R105.0007.4.6 | 1.5 | 0.75 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| R105.0010.2.6 | 2 | 1 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| R105.0010.4.6 | 2 | 1 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | ▲ | ||
| L105.0005.2.6 | 1 | 0.5 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0005.4.6 | 1 | 0.5 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0007.2.6 | 1.5 | 0.75 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ||
| L105.0007.4.6 | 1.5 | 0.75 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ⃤ | ▲ | ||
| L105.0010.2.6 | 2 | 1 | 3.3 | 5.7 | 3.7 | 7 | 15 | 30 | 1.8 | 6 | 105125 | ⃤ | ⃤ | ||
| L105.0010.4.6 | 2 | 1 | 3.3 | 5.7 | 3.7 | 7 | 25 | 40 | 1.8 | 6 | 105125 | ▲ | |||
| P | |||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
