Horn Supermini 105 Ø ≥ 6 mm R/L105.0610/0620...1.8/2.8

R/L105.1833/1840...		R/L105.1033...6		105.1833...H.6/H.7		105.1833...HV6/HV7		105.1833.04...HV6/HV7		R/L105.2133/2140...
R/L105.0100/0200...		R/L105.0100/0200...		R/L105.0005/0010...		R/L105.5519/5528...		R/L105.NP18/NP27...		R/L105.0610/0620...

Insert Ø ≥ 6 mm
Face Grooving		Internal Axial Grooving in Front of Center		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

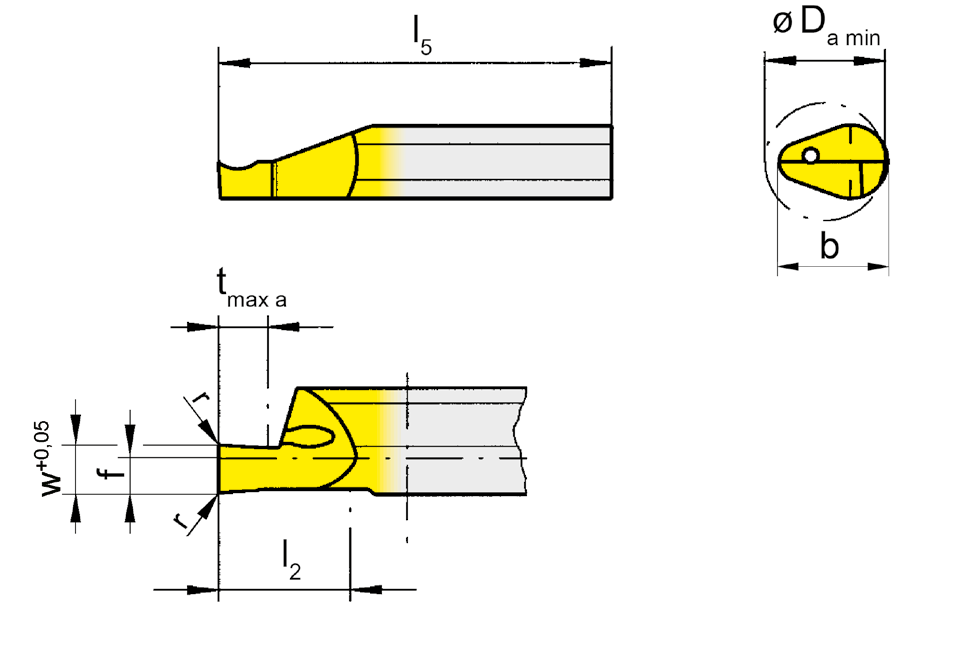

Part number	w	r	f	b	l₂	l₅	t_{max a}	D_{a min}	HIS	aaa	EG35	TI25
R105.0610.1.8	1	0.05	2	7	10	25	2	6	105125		▲	▲
R105.0615.1.8	1.5	0.05	2	7	10	25	3	6	105125		▲	▲
R105.0620.1.8	2	0.05	2	7	10	25	5	6	105125		▲	▲
R105.0610.2.8	1	0.05	2	7	15	35	2	6	105125		▲	▲
R105.0615.2.8	1.5	0.05	2	7	15	35	3	6	105125		▲	▲
R105.0620.2.8	2	0.05	2	7	15	35	5	6	105125		▲	▲
L105.0610.1.8	1	0.05	2	7	10	25	2	6	105125		▲	▲
L105.0615.1.8	1.5	0.05	2	7	10	25	3	6	105125		▲	▲
L105.0620.1.8	2	0.05	2	7	10	25	5	6	105125		▲	▲
L105.0610.2.8	1	0.05	2	7	15	35	2	6	105125		⃤	▲
L105.0615.2.8	1.5	0.05	2	7	15	35	3	6	105125		⃤	▲
L105.0620.2.8	2	0.05	2	7	15	35	5	6	105125		⃤	▲
										P
										M
										K
										N
										S
										H

We reserve the right to make technical changes.
