Supermini 109 |
| B109 Toolholder | |||||||||
 Internal Grooving |
 Internal Boring |
 Internal Coolant |
|||||||

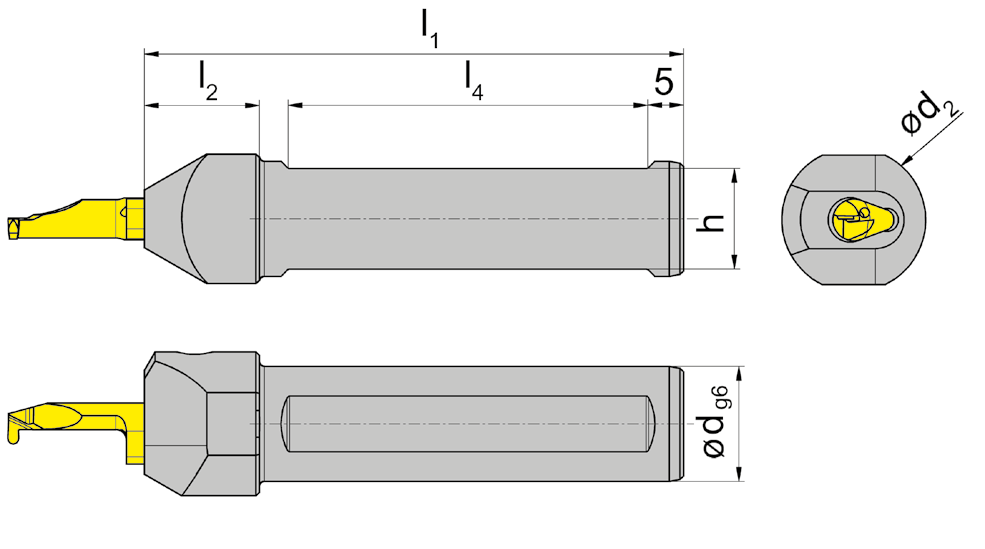

 Picture = right hand cutting version |
 |
| Part number | d | l1 | h | l4 | l2 | d2 | HWS |
| B109.0012.01 | 12 | 75 | 10 | 50 | 16 | 20 | 109140 |
| B109.0016.01 | 16 | 75 | 14 | 50 | 16 | 20 | 109140 |
| B109.0020.01 | 20 | 90 | 18 | 55 | - | 20 | 109140 |
| B109.0025.01 | 25 | 100 | 23 | 55 | - | 25 | 109140 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B109... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
