Supermini 109 |
| B109 Toolholder | |||||||||
 Face Grooving |
 Internal Coolant |
||||||||

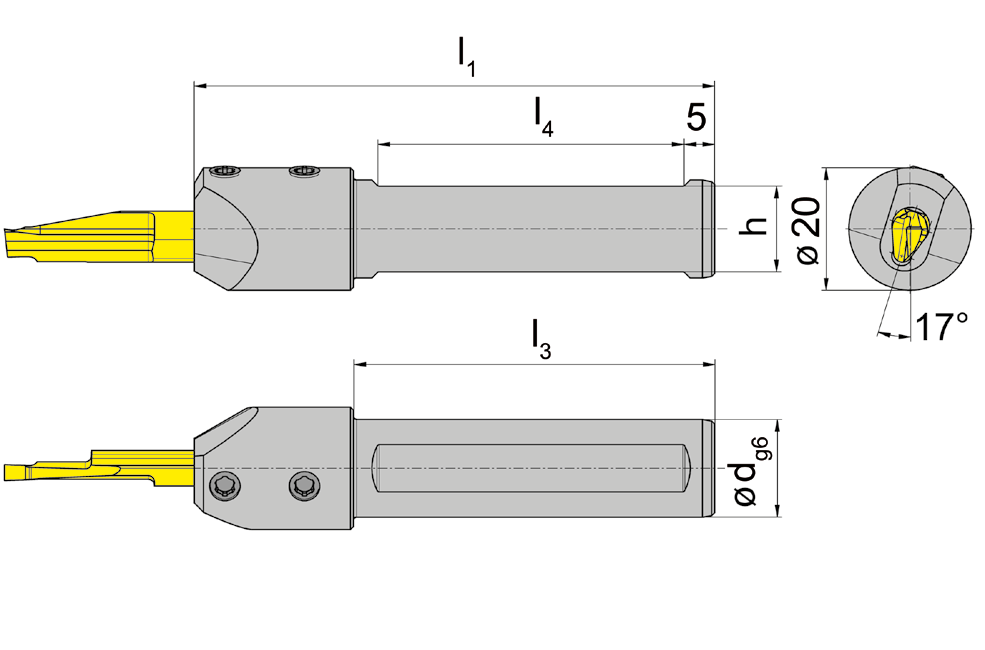

 R = right hand version shown L = left hand version |
 |
| Part number | d | l1 | l3 | h | l4 | HWS |
| RB109.0016.14.2 | 16 | 85 | 59 | 14 | 50 | 109240 |
| LB109.0016.14.2 | 16 | 85 | 59 | 14 | 50 | 109240 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LB109.0016.14.2 | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
