Horn Supermini 109 Ø ≥ 6 mm R/L109.1828/1838...6/7

R/L109.1828/1838...6/7		R/L109.1828/1838.04...6/7		R/L109.1828/1838...HV6/HV7		R/L109.1828/1838.04...HV6/HV7		R/L109.4545...3.6/5.7
R/L109.0100/0200...1.6/3.6		R/L109.0150/0200...4.6/6.6		R/L109.0005/0010...4.6/6.7		R/L109.3028...3.6/5.7		R/L109.0915/1730...3.6/5.7

Insert Ø ≥ 6 mm
Cutting Angle		Internal Boring		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

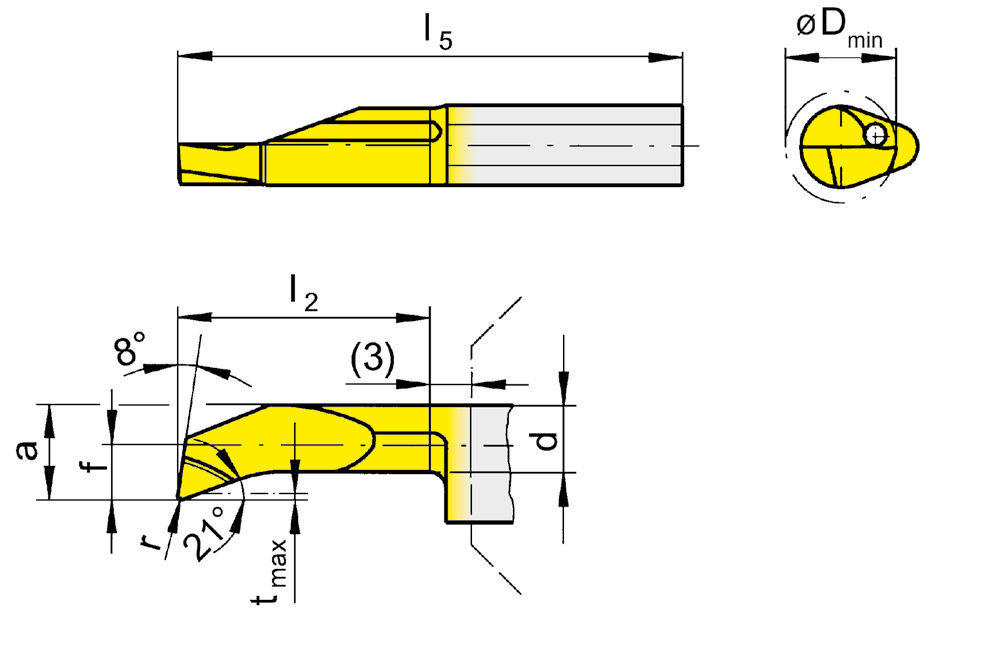

Part number	r	f	a	d	l₂	l₅	t_max	D_min	HIS	aaa	TH35
R109.1828.1.6	0.2	2.8	5.7	5	10	28	0.4	6	109140		⃤
R109.1828.2.6	0.2	2.8	5.7	5	15	33	0.4	6	109140		⃤
R109.1828.3.6	0.2	2.8	5.7	5	20	38	0.4	6	109140		▲
R109.1828.4.6	0.2	2.8	5.7	5	25	43	0.4	6	109140		⃤
R109.1828.5.6	0.2	2.8	5.7	5	30	48	0.4	6	109140		⃤
R109.1828.6.6	0.2	2.8	5.7	5	35	53	0.4	6	109140		⃤
R109.1828.7.6	0.2	2.8	5.7	5	40	58	0.4	6	109140		▲
R109.1838.2.7	0.2	3.8	6.7	6	15	33	0.4	7	109140		⃤
R109.1838.3.7	0.2	3.8	6.7	6	20	38	0.4	7	109140		⃤
R109.1838.4.7	0.2	3.8	6.7	6	25	43	0.4	7	109140		⃤
R109.1838.5.7	0.2	3.8	6.7	6	30	48	0.4	7	109140		▲
R109.1838.6.7	0.2	3.8	6.7	6	35	53	0.4	7	109140		▲
R109.1838.7.7	0.2	3.8	6.7	6	40	58	0.4	7	109140		▲
R109.1838.8.7	0.2	3.8	6.7	6	45	63	0.4	7	109140		▲
L109.1828.1.6	0.2	2.8	5.7	5	10	28	0.4	6	109140		⃤
L109.1828.2.6	0.2	2.8	5.7	5	15	33	0.4	6	109140		⃤
L109.1828.3.6	0.2	2.8	5.7	5	20	38	0.4	6	109140		⃤
L109.1828.5.6	0.2	2.8	5.7	5	30	48	0.4	6	109140		⃤
L109.1828.6.6	0.2	2.8	5.7	5	35	53	0.4	6	109140		⃤
L109.1828.7.6	0.2	2.8	5.7	5	40	58	0.4	6	109140		⃤
L109.1838.2.7	0.2	3.8	6.7	6	15	33	0.4	7	109140		⃤
L109.1838.3.7	0.2	3.8	6.7	6	20	38	0.4	7	109140		⃤
L109.1838.4.7	0.2	3.8	6.7	6	25	43	0.4	7	109140		⃤
L109.1838.5.7	0.2	3.8	6.7	6	30	48	0.4	7	109140		⃤
L109.1838.6.7	0.2	3.8	6.7	6	35	53	0.4	7	109140		⃤
L109.1838.7.7	0.2	3.8	6.7	6	40	58	0.4	7	109140		⃤
L109.1838.8.7	0.2	3.8	6.7	6	45	63	0.4	7	109140		⃤
										P
										M
										K
										N
										S
										H
